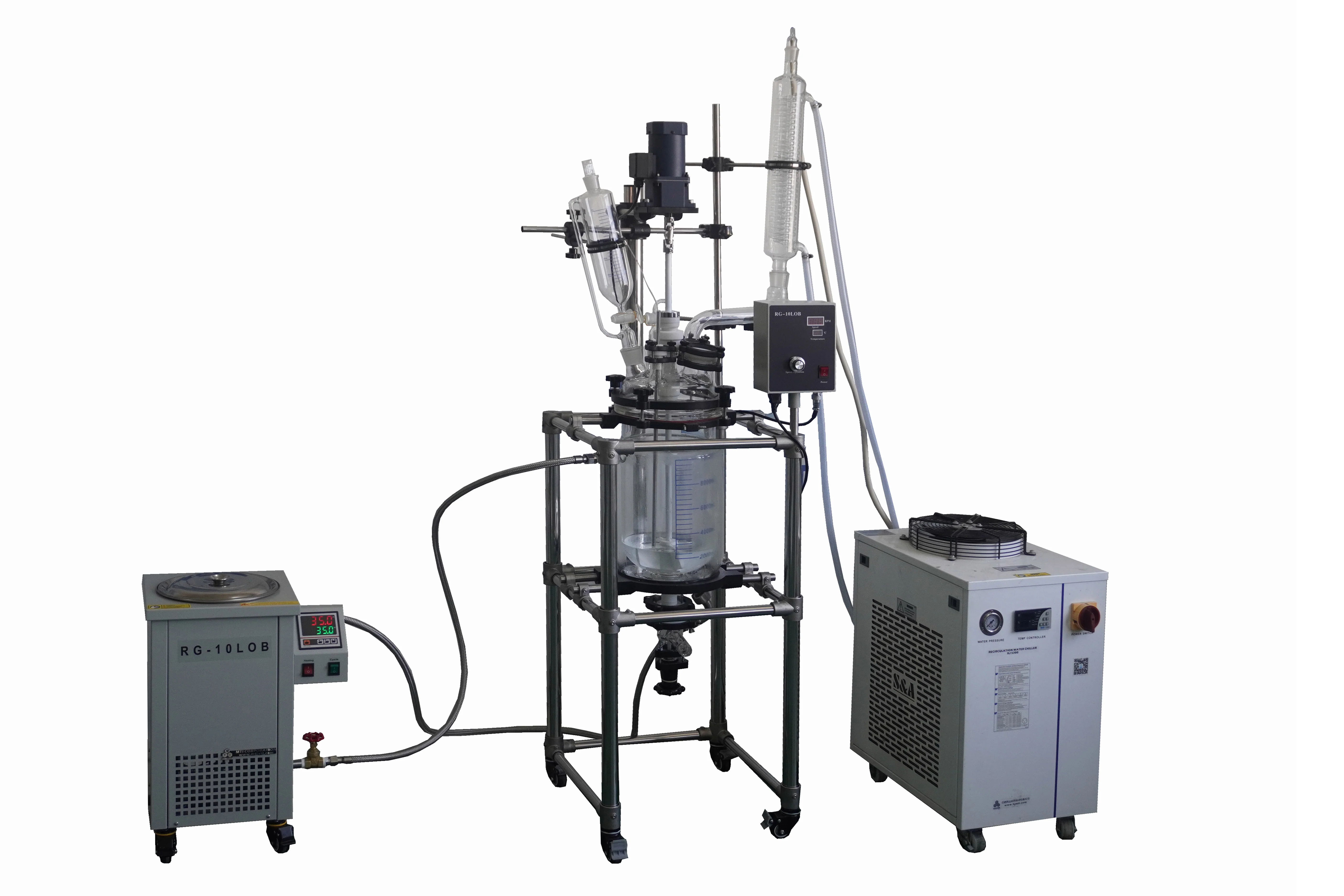

10L or 20L Glass Reactor with Optional PTFE Stirring Blade & 200oC Oil Bath - RG- LXX

RG- LXX is a double-layer glass chemical reactor with option 10L or 20L capacity. Multi-stirring PTFE blade is selectable to avoid contamination. Hot oil recirculator is available to heat the reactor up to 200oC

SPECIFICATIONS

Power Requirements	For Glass Reactor for 10L: Working Voltage: AC208-240V, Single Phase, 50Hz Output Power: 100W an AC110V is available via a 200W transformer For Bath Heater for 10 L: Working Voltage: AC208-240V, Single Phase, 50Hz Output Power: 3KW

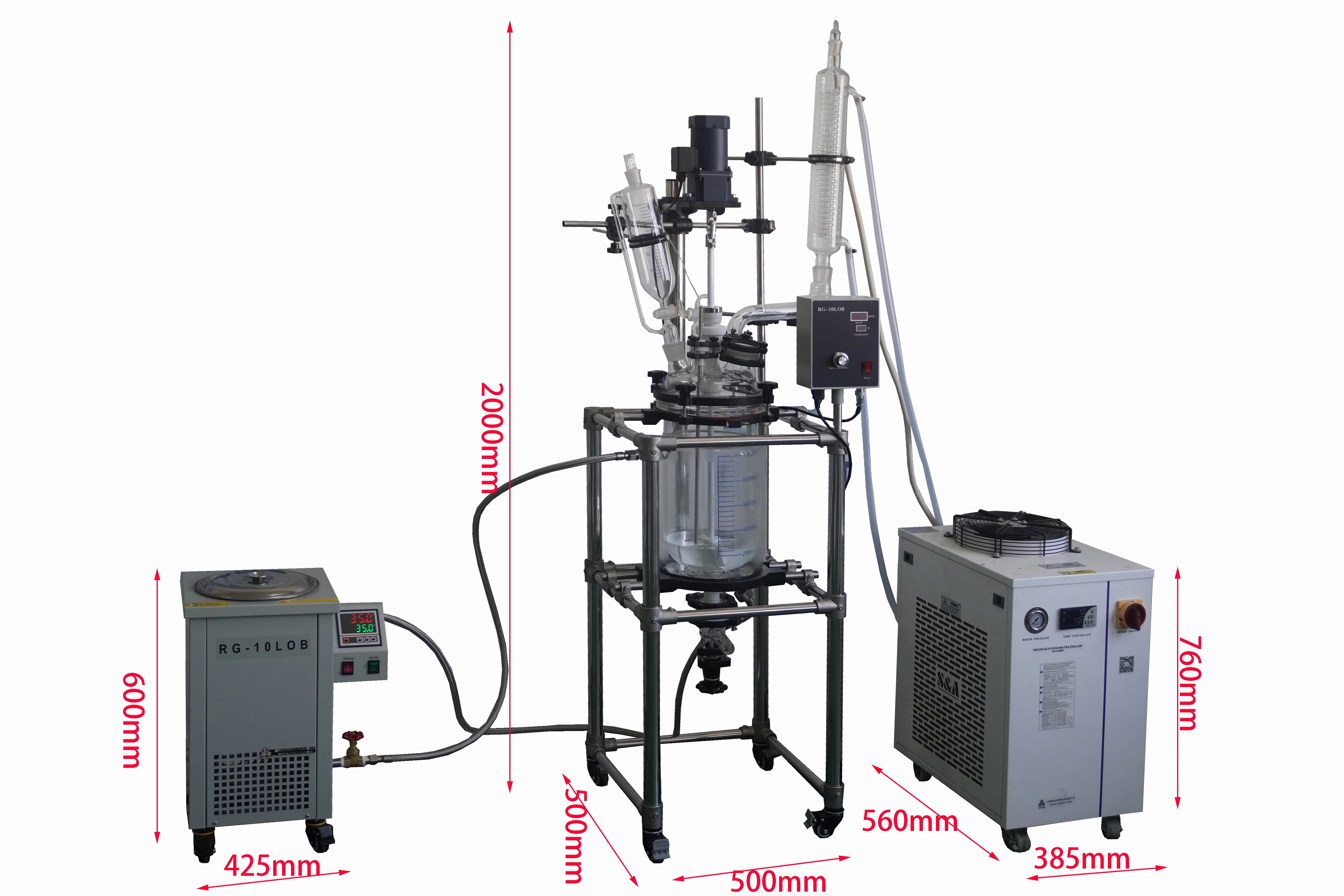

Bath Heater	Max. 200 °C Oil Bath Heater is available upon request to heat the reactor. A separated bath heater is connected to the glass reactor system via the liquid delivery tubes (Stainless-steel bellow tube) for temperature regulation. PT100 sensor is utilized for temperature detection of the Bath Heater to offer ±1 °C temperature accuracy, which is regulated by a PID temperature control. Working Temperature Range for Water Bath: RT - 99°C; Working Temperature Range for Oil Bath: RT - 200°C The bath heater is equipped with a pump that recirculates thermal fluid to the heating jacket at a constant flow rate of 10 L/min. Bath Heater Dimension: 425 mm x 325 mm x 600mm (L x W x H) A drainage gate valve is located on the bottom of the Bath Heater to release the thermal fluid into the heating jacket, while a return port located on the side of the Bath Heater enables the continuous circulation of thermal fluid.
Reactor Chamber	The reactor chamber is made of double-layer glass with air-tight sealed 10L or 20 L capacity is selectable from product option 10 L Reactor Dimensions: 390 mm O.D x 330 mm I.D The Drainage is built at the bottom of the reactor to empty the reactor after a batch reaction. For the Bath Heater optional, the heating jacket is integrated around the reactor to allow the thermal fluid to circulate through the heating jacket for heating. A thermal cloth layer is applied to enhance efficiency.
Siting Blade	Rotating Speed: 0 - 25 rpm variable by constant torque The stirring blade is made of PTFE Various blades are selectable as an option, but A type blade is included as standard
Compliance	CE certified NRTL or CSA certification is available at the extra cost
Application Note	For thermal fluid selection: deionized or distilled water should be used for water-based circulation. Oil with a viscosity below 100sSt are recommended for used within this equipment as oil-based circulation.

Product Information

Shipping & Returns

10L or 20L Glass Reactor with Optional PTFE Stirring Blade & 200oC Oil Bath - RG- LXX

SPECIFICATIONS

Power Requirements	For Glass Reactor for 10L: Working Voltage: AC208-240V, Single Phase, 50Hz Output Power: 100W an AC110V is available via a 200W transformer For Bath Heater for 10 L: Working Voltage: AC208-240V, Single Phase, 50Hz Output Power: 3KW
Bath Heater	Max. 200 °C Oil Bath Heater is available upon request to heat the reactor. A separated bath heater is connected to the glass reactor system via the liquid delivery tubes (Stainless-steel bellow tube) for temperature regulation. PT100 sensor is utilized for temperature detection of the Bath Heater to offer ±1 °C temperature accuracy, which is regulated by a PID temperature control. Working Temperature Range for Water Bath: RT - 99°C; Working Temperature Range for Oil Bath: RT - 200°C The bath heater is equipped with a pump that recirculates thermal fluid to the heating jacket at a constant flow rate of 10 L/min. Bath Heater Dimension: 425 mm x 325 mm x 600mm (L x W x H) A drainage gate valve is located on the bottom of the Bath Heater to release the thermal fluid into the heating jacket, while a return port located on the side of the Bath Heater enables the continuous circulation of thermal fluid.
Reactor Chamber	The reactor chamber is made of double-layer glass with air-tight sealed 10L or 20 L capacity is selectable from product option 10 L Reactor Dimensions: 390 mm O.D x 330 mm I.D The Drainage is built at the bottom of the reactor to empty the reactor after a batch reaction. For the Bath Heater optional, the heating jacket is integrated around the reactor to allow the thermal fluid to circulate through the heating jacket for heating. A thermal cloth layer is applied to enhance efficiency.
Siting Blade	Rotating Speed: 0 - 25 rpm variable by constant torque The stirring blade is made of PTFE Various blades are selectable as an option, but A type blade is included as standard
Compliance	CE certified NRTL or CSA certification is available at the extra cost
Application Note	For thermal fluid selection: deionized or distilled water should be used for water-based circulation. Oil with a viscosity below 100sSt are recommended for used within this equipment as oil-based circulation.
