1250°C Electric Bogie Hearth Furnace (360L, 990*580*600mm) with Max. 500Kg Loading - KSL-1200X-360L

1250°C Electric Bogie Hearth Furnace (360L, 990*580*600mm) with Max. 500Kg Loading - KSL-1200X-360L

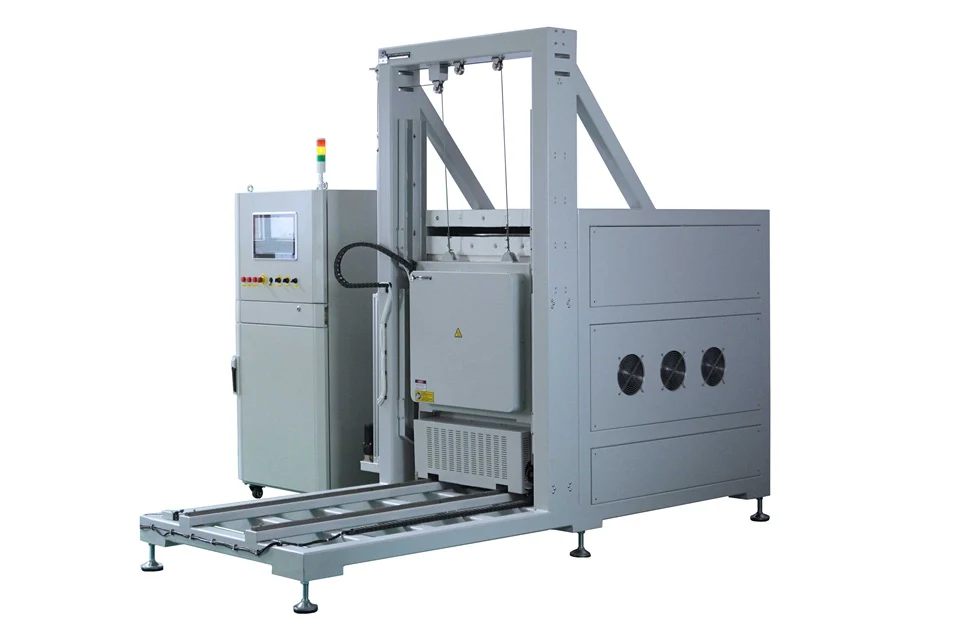

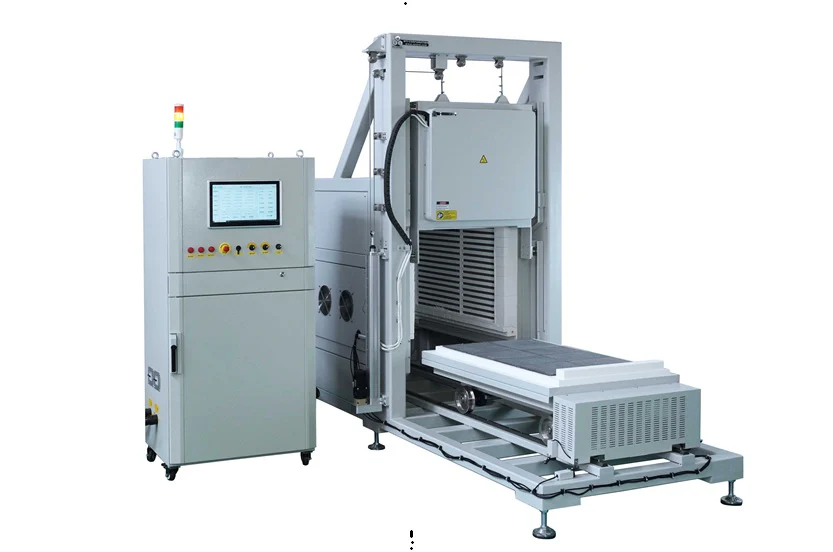

KSL-1200X-360L is an electric bogie hearth furnace with a 360L heating chamber ( L99*W58*H60 cm ) and a  500 kg load.

SPECIFICATIONS:



Power
  • Voltage 460VAC +/- 10% , three phase
  • 90 KW max.A A
  • A power cable ( 3 meters ) is included, but without a plug

 Control Unit
  •  The control unit is in a separate box with a touch-screen computer, which will control
  • Temperature profile inside the chamber
  • Door lift and closedown
  •  Bottom trolley moving in and out

Heating Zone
  • Heating chamber size: L990 x W580 x H600 mm

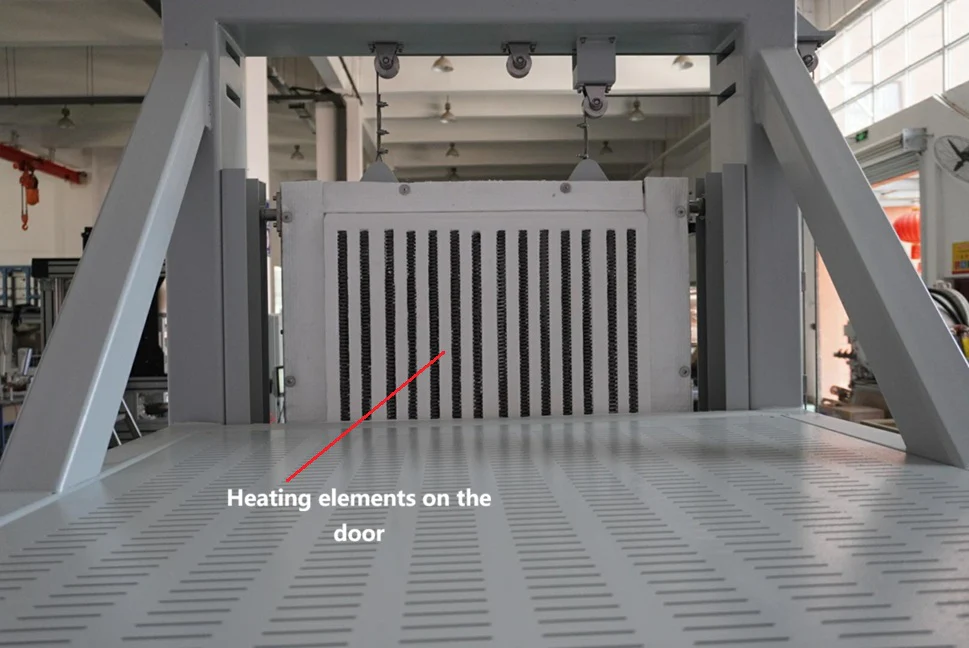

  • Four-sided heating: right, left, back, and door with independent temperature control
  • Max. working temperature:
  • Max. 1250 °C < 1 hr.
  • Continuous:  1200 oC
  • Max. heating rate:  ≤10℃/min
  • Max. loading:   500 kg
  • K-type thermal couple
  • Temperature accuracy: +/- 1oC

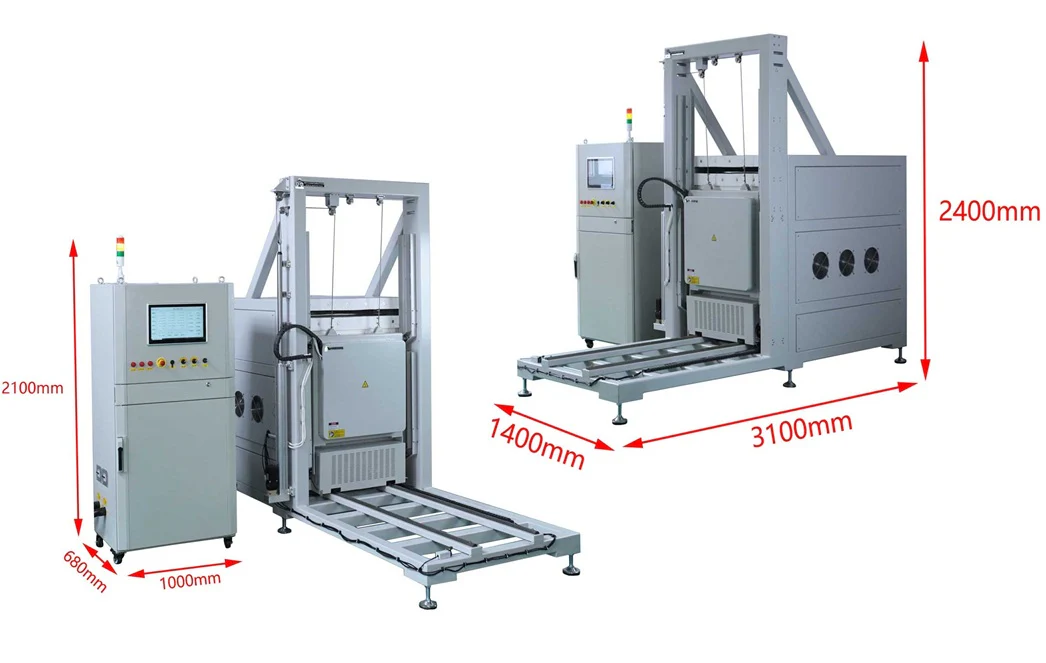

 Dimention
Compliance
  • CE Certified
  • NRTL / CSA Certification is available upon request; additional charges will apply



$3.50

Original: $10.00

-65%
1250°C Electric Bogie Hearth Furnace (360L, 990*580*600mm) with Max. 500Kg Loading - KSL-1200X-360L—

$10.00

$3.50

Product Information

Shipping & Returns

Description

KSL-1200X-360L is an electric bogie hearth furnace with a 360L heating chamber ( L99*W58*H60 cm ) and a  500 kg load.

SPECIFICATIONS:



Power
  • Voltage 460VAC +/- 10% , three phase
  • 90 KW max.A A
  • A power cable ( 3 meters ) is included, but without a plug

 Control Unit
  •  The control unit is in a separate box with a touch-screen computer, which will control
  • Temperature profile inside the chamber
  • Door lift and closedown
  •  Bottom trolley moving in and out

Heating Zone
  • Heating chamber size: L990 x W580 x H600 mm
  • Four-sided heating: right, left, back, and door with independent temperature control
  • Max. working temperature:
  • Max. 1250 °C < 1 hr.
  • Continuous:  1200 oC
  • Max. heating rate:  ≤10℃/min
  • Max. loading:   500 kg
  • K-type thermal couple
  • Temperature accuracy: +/- 1oC
 Dimention
Compliance
  • CE Certified
  • NRTL / CSA Certification is available upon request; additional charges will apply
