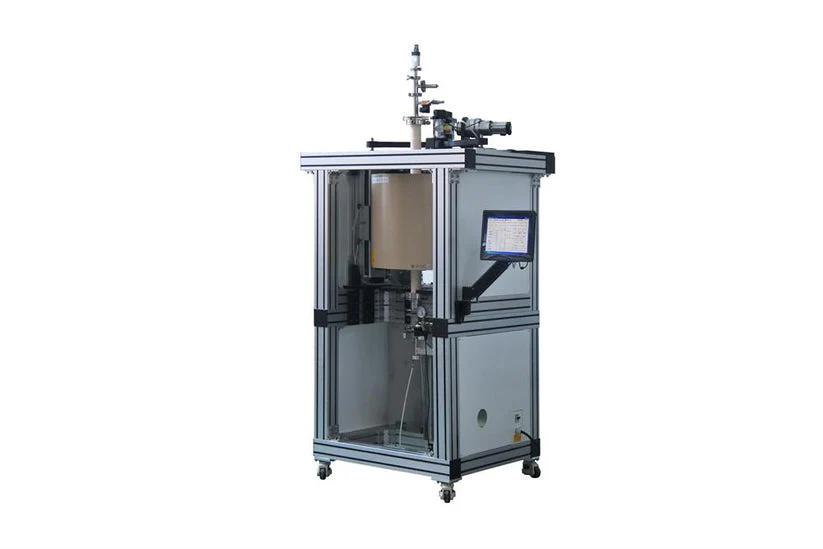

1600 °C Max. Bridgman Crystal Growth Furnace in Air for 5" Dia. Crystal Ingots - GSL-BG-L5

GSL-BG-LXX is a customized three-zone heating Bridgman furnace for growing 5" crystal ingots in air

Three-zone heated
Temperature: 1600°C continuous,
Temperature control stability ±0.1°C
The heating charmer is customizable for a 5" crystal ingot.
Please contact the MTI team for your specification

Power	220 VAC single phase 50/60Hz 12 KW The power cable is included without a plug
Heating Chamber	MoSi2 heating elements Three-zone heating Heating zone length: 60 - 300 mm selectable
Working Temperature	≤1600°C (continuous)
Temperature Control	4 Type B, dual thermocouples 3 T/C for control, one for monitoring the temperature of the crystal seed
Temperature controller	Eurotherm 3004 Temperature Controllers Temperature control stability ±0.1°C 16 Temperature segments
Crucible	Not including
Pulling Mechanism	As the furnace heater moves upward, the crucible moves toward the bottom exit of the furnace. The maximum travel distance of the furnace heater is 200 mm. Travel speed: 0.03-3 mm/hr Moving accuracy +/- 1 micron
Compliance	CE Certified NRTL or CSA certification is available upon request for an additional fee.
