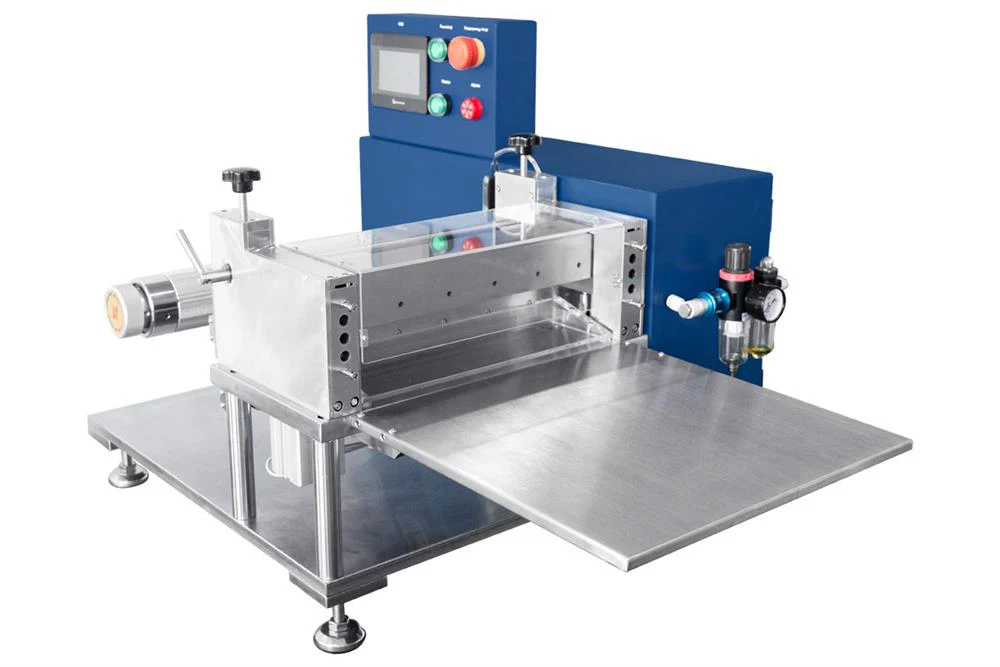

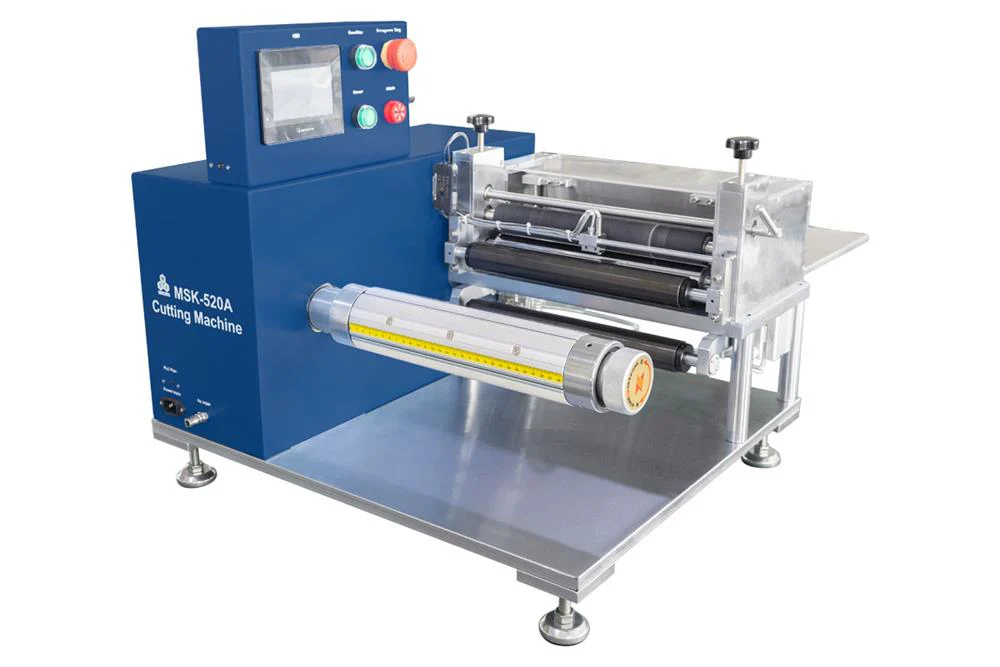

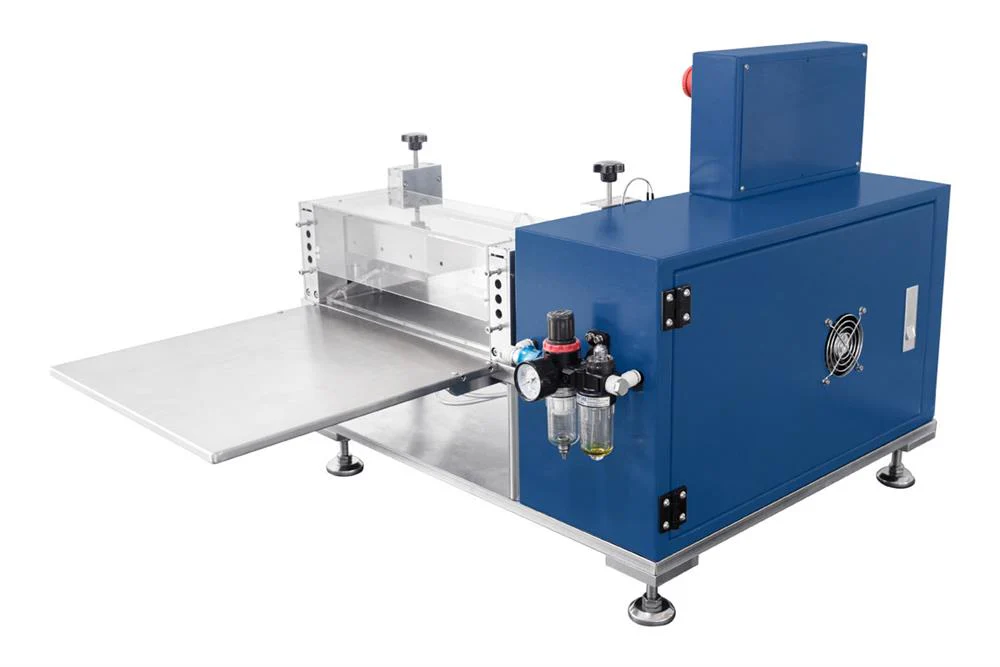

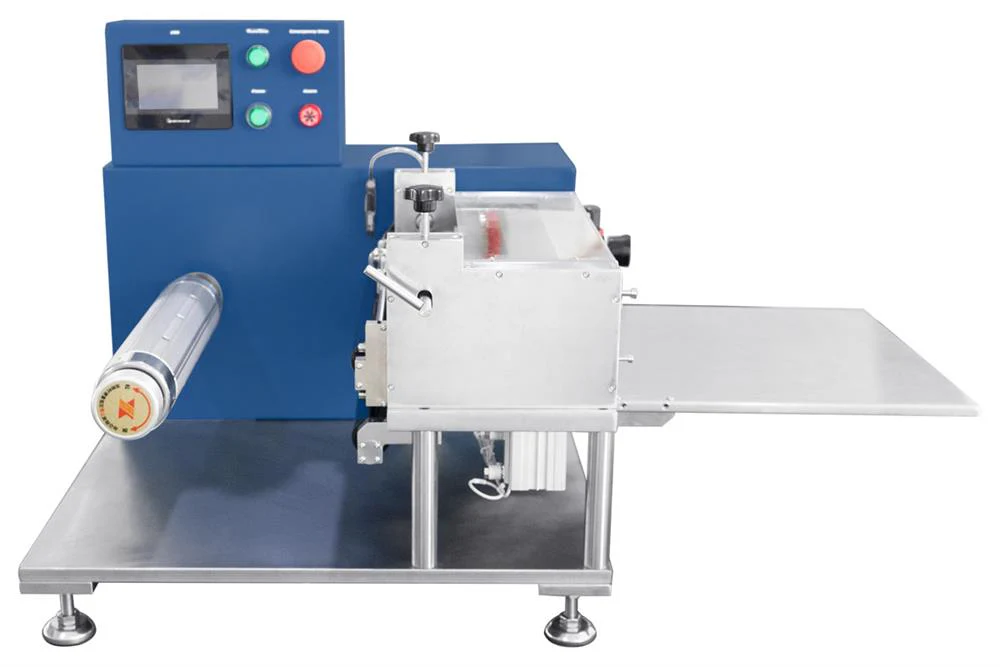

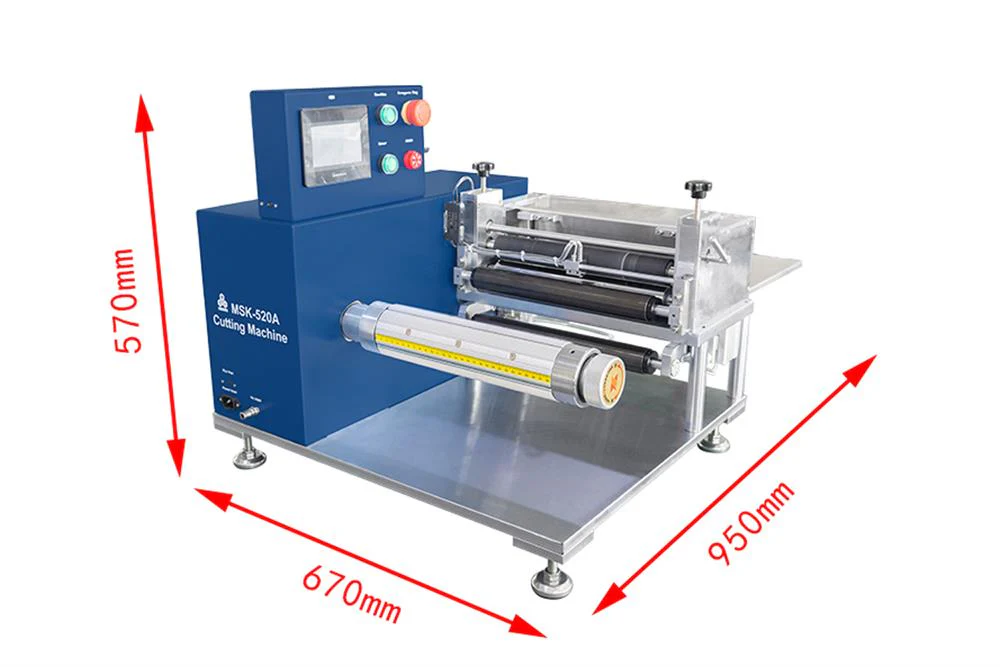

Automatic Roll-to-Sheet Cutting Machine for Electrodes Cutting - MSK-520A

Outstanding Features:

Auto-tension control.
The cutting width of electrodes: 10 mm - 290 mm
Continuous fixed-length cutting mode
Minor adjustment at the cutting edge for the continuous cutting
PLC Touch screen control panel

MTI has granted the patent 201821974061.8 for the Automatic Slitting Machine MSK-520 since September 2019.

SPECIFICATIONS:

Working Voltage	Single-phase 208~240VAC, 50/60Hz
Max. Power Consumption	500 W
Acceptable Electrode Width	10 mm - 290 mm
Cutting Accuracy	+/- 0.3mm
Tension Control	Maximum 30 N
Linear Speed Allowed for Cutting	Maximum 2 m/min
Acceptable Electrode Roll Size	Maximum 300 mm O.D.
Compress Air Requirement	0.5~0.8MPa (Please note that an air compressor is a need for the operation of this machine. Air Compressor is not included. please click here to order or order from your local hardware store) Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator. pic1 pic2
