8 Channels Coin Cell Testing Board with Cable & Optional Connector for BST8 Series Battery Analyzers - BC8C
Specification
- 8 cables with optional connectors are included in the standard package for immediate use
-

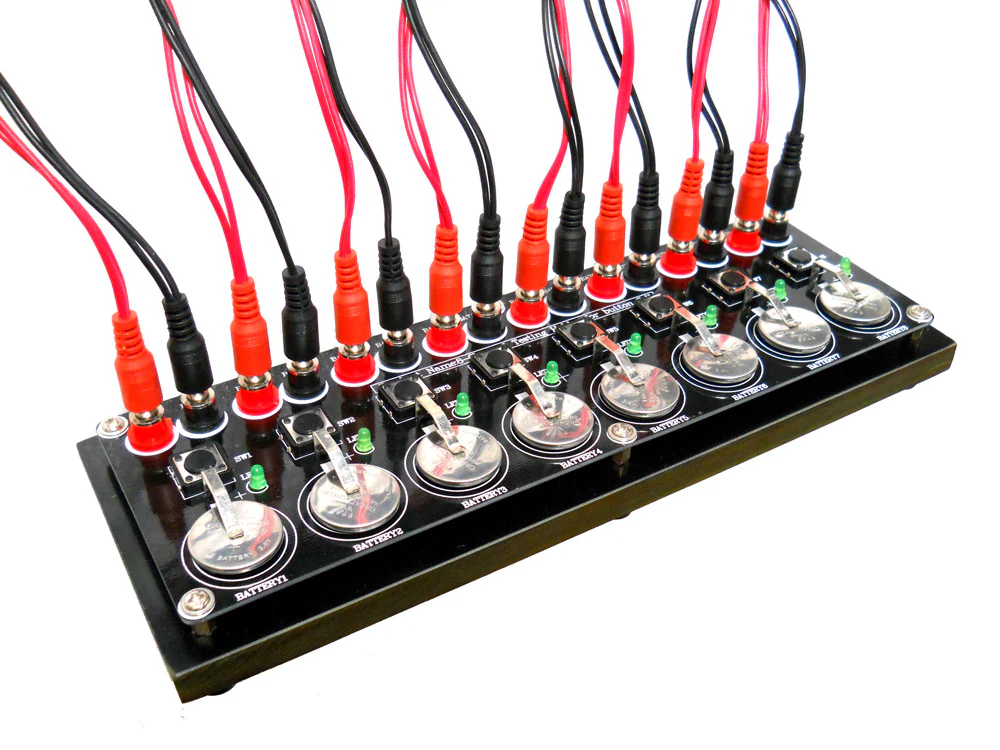

The connectors to the board are the banana plug for easy insertion and removal,(AS Shown in pic-1). The Banana Plug of the cable are 4mm banana plug, Max wire diam.4.2 mm
-
Another end or of connector testing system are optional connectors (choose the right one for you from above "connector type" when order)
- 4-pin bayonet connectors compatible with MTI's battery analyzers only (Pic. 2 & 3)

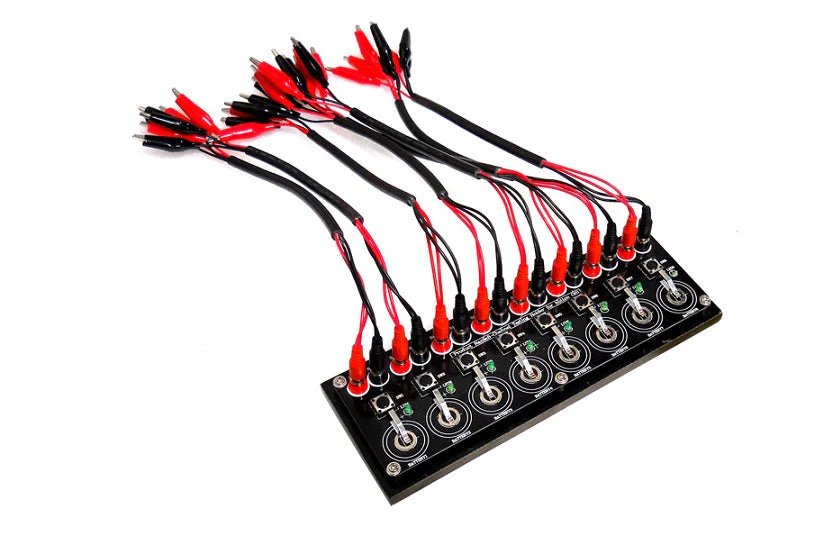

- 4 alligator clamps (Two small for voltage and two big for current) compatible with other vendor's testing system (Pic. 4 & 5)
- 4-pin bayonet connectors compatible with MTI's battery analyzers only (Pic. 2 & 3)
-
-
- Built-in battery polarity check light will be on when right place the coin cell and press down the check button
- Can test coin cell with diam. up to 25mm and compatible with most of the popular coin cell size, like CR2016, CR2032, CR2325, and CR2450
- 8 channels work independently
- Easy battery insertion and removal
- Holder Material: Polypropylene
- Dimension: 230 mm L x 80 mm W x 32 mm H
