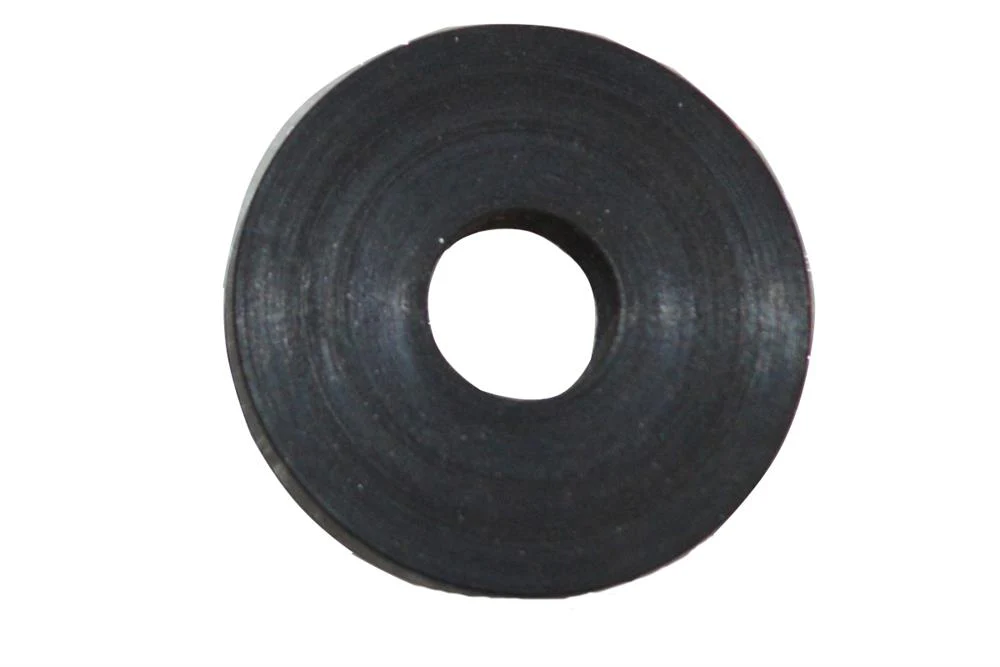

Black FKM Ring for MTI-CIP Series, CIP-SOR
Specification:
| Material | FKM is the designation for about fluoroelastomers as defined in ASTM D1418. | |||||||||||||||
| Drawing | Black Rubber ring for MTI-CIP Series, EQ-CIP-RING | |||||||||||||||
 |
Example | Outside Diameter | Inside Diameter | H | ||||||||||||
| YLJ-CIP-15 | 7/8 " (22mm ±0.2) | 8mm ±0.1 | 4 + 0.1~0.2mm | |||||||||||||
|
YLJ-CIP-20 CIP30-E300 |
1 1/4" (30mm ±0.2) | 10mm ±0.1 | 5 + 0.1~0.2mm | |||||||||||||
| CIP35D900 | 1 3/8" (35mm ±0.25) | 10mm ±0.2 | 5 + 0.1~0.2mm | |||||||||||||
| 2" (50mm ±0.25) | 17mm ±0.2 | 7 + 0.1~0.2mm | ||||||||||||||
