Automatic and Vacuum-Sealed Linear Sliding Device for Tube Furnace - Slide-300

Automatic and Vacuum-Sealed Linear Sliding Device for Tube Furnace - Slide-300

Features

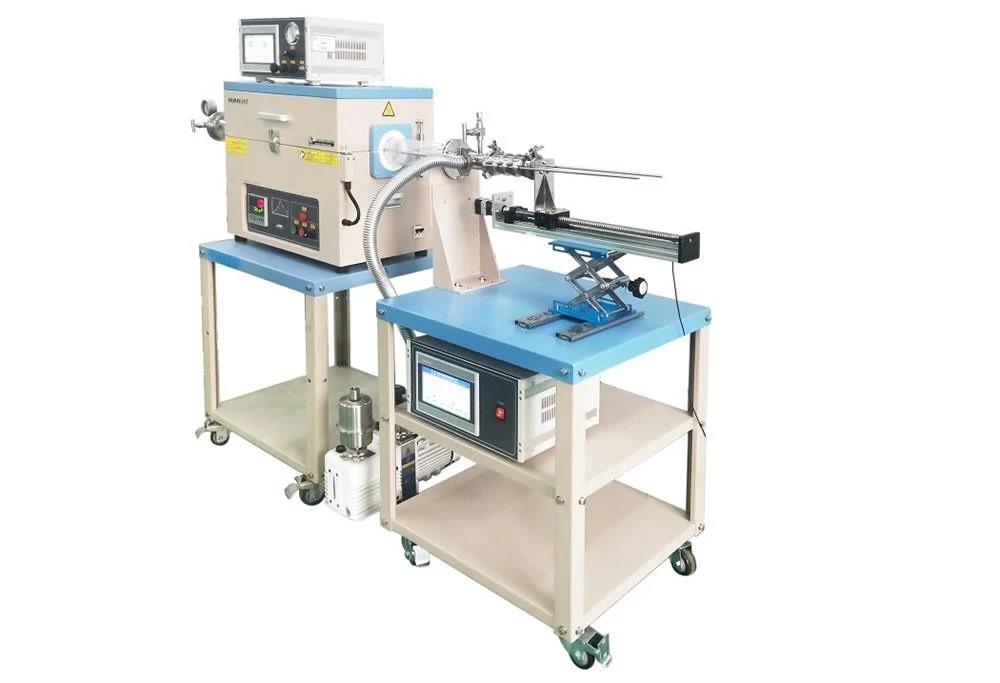

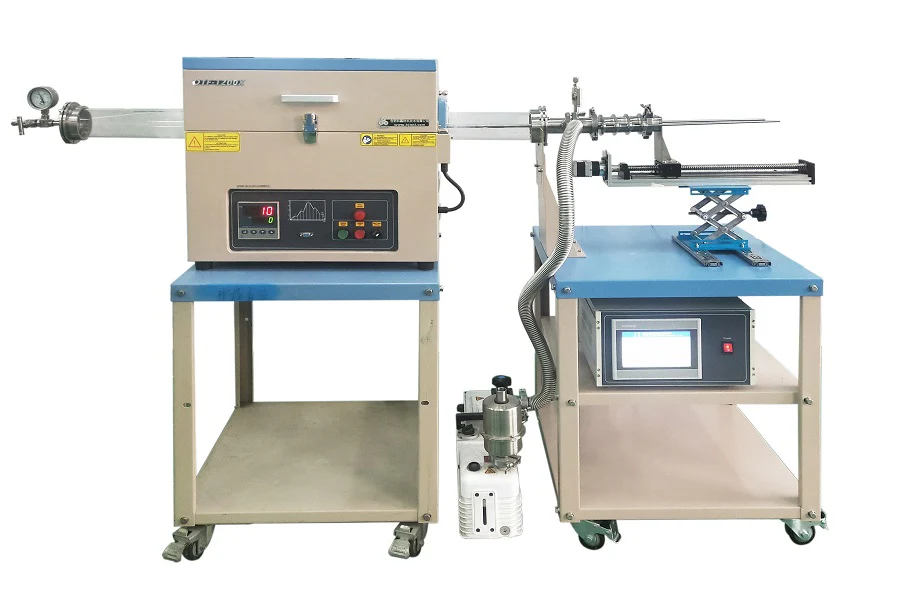

 		EQ-Slide-300 is an automatic vacuum-sealed slide module that is designed to connect an 80 mm OD processing tube for moving a sample in and out under a vacuum or controlled atmosphere.
It can convert a tube furnace as an RTP furnace for fasting heating ad fast cooling under a controlled atmosphere, or a horizontal crystal growth furnace for 2D materials at low cost.

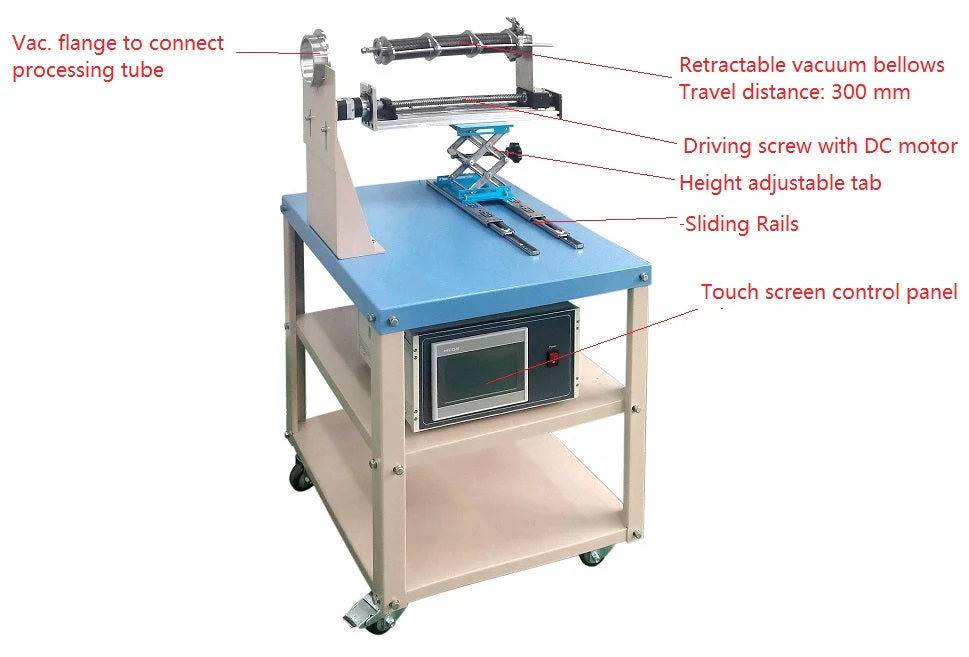

 Moving Mechanism
  • The precision screw is driven by DC motor at the two-stage speed via a vacuum-sealed scalable bellows
    • Fast speed: 300 mm / minute ( constant speed)
    • Slow speed: 0.5 mm - 30 mm / minute ( adjustable )
  • Moving distance: 1 - 300 mm Max programmable on the control panel
  • The moving mechanism is installed on the mobile table with 600x600 x 600
Tube Flange
  • One set of 80 mm OD vacuum-sealed flange with KF25 vacuum port and gas inlet valve is included to connect scalable bellows and processing tube with KF 25 port
  • Optional 25 mm, 60mm, 100 mm OD flange are available upon request
  • Vacuum level: 10-5 torr by a turbopump
Sample Holder
  • One stainless steel rod with the fibrous thermal block is installed on the center of moving bellows
  • One 50x50mm quartz sample holder is inserted into the rod for carrying sample for CVD or annealing processing.
  • One height adjustable table in the bottom of the moving mechanism for easy alignment.
  • One K-type thermal couple is placed under the sample holder via a central rod to monitor the temperature.
Control Panel
  • 7" color touch screen panel with the control box is located on the mobile cart
  • Programmable all moving parameters and record/display the temperature of the sample order.
Dimension
Note This device only match MTI tube furnaces as the link below
