AC to DC Power Supply, Max. Output 30VDC & 100A, 3000W - EQ-TF-220110-3000

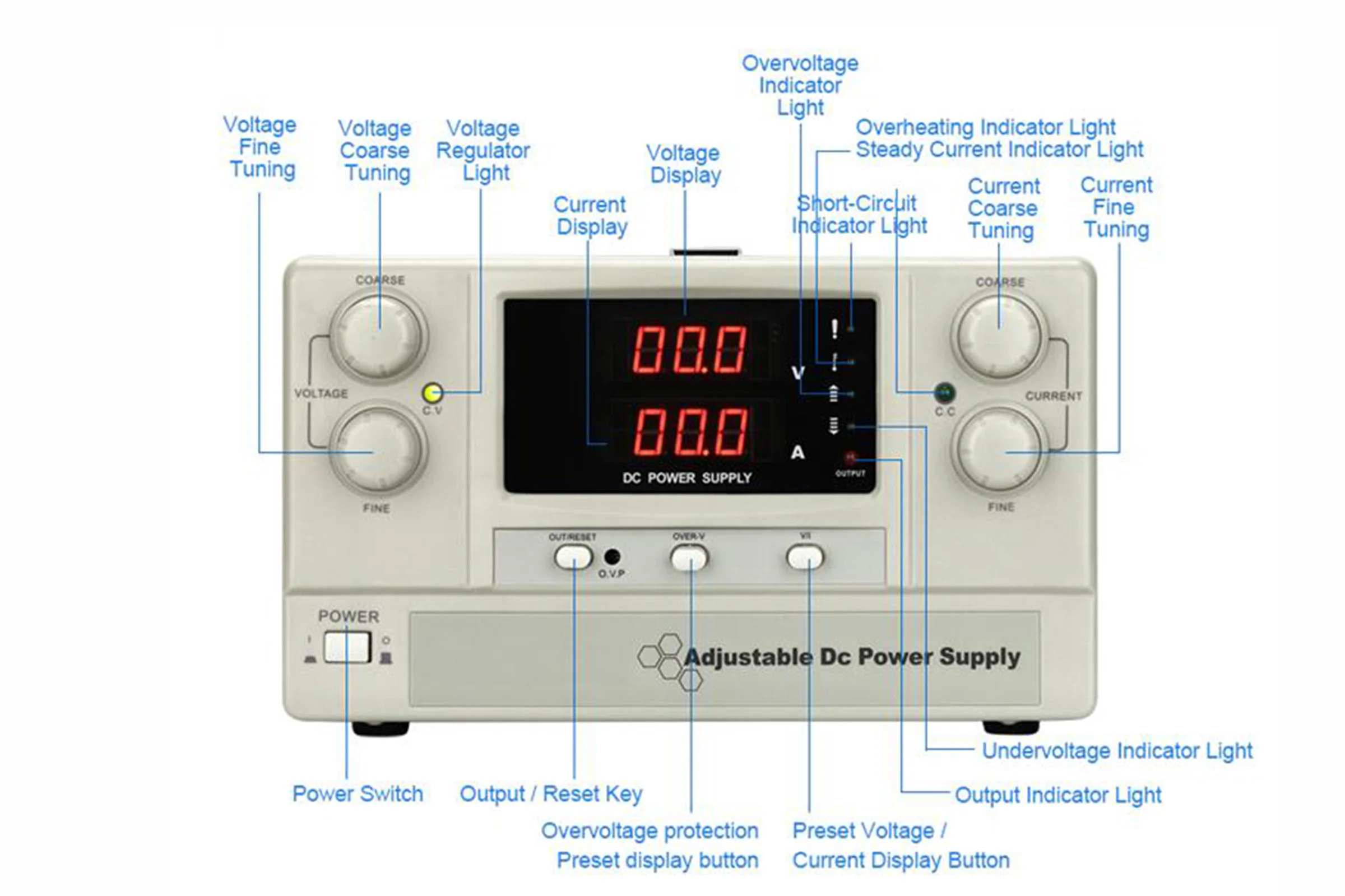

EQ-TF-220110-3000 is a 30VDC/100A variable DC Power Supply designed to provide precise and adjustable voltage and current output for a wide range of laboratory, testing, and industrial applications. The unit supports both 110VAC and 220VAC single-phase input. This unit delivers stable voltage and current output to enable reliable power to the electronic applications; the output current and voltage are displayed on the screen. Its high output capacity and precise regulation make it an ideal power source for general laboratory use.

SPECIFICATION:

Input Power	110VAC or 220VAC (±10%), Single Phase, 50/60 Hz Please select it from the product option bars.
Output Voltage Range	0-30 V
Output Current Range	0-100 A
Max. Output Power	3000 W
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3-digit voltage and current display with ±0.5% reading accuracy for both output voltage and output current.
Efficiency	>86%
Regulation	Load Regulation (CV): Stable Voltage ≤ 0.5%, constant current ≤ 0.5% Line Regulation (CV): Stable Voltage ≤ 0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ Input-Chassis: ≥20MΩ Output-Chassis: ≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute Input-Chassis: AC1500V, 10mA, 1 minute Output-Chassis: AC1500V, 10mA, 1 minute
Current Imbalance	≤ 5% +0.5 A
Operating/Storage Environment	Operated between -10°C to 45°C at 85% RH Stored within -20°C to 70°C at 80% RH
Protection	The Over-Load and Over-Voltage protections are equipped. Overheat Protection threshold: 70°C to 80°C, an internal cooling air duct forward and exit
Lifespan	>50000h
Compliance	CE Certified
