Automatic Hot Mounting Press up to 200oC and 2.3 T for Metallographic Samples - HXQ50

Automatic Hot Mounting Press up to 200oC and 2.3 T for Metallographic Samples - HXQ50

HXQ-50 is an automatic mounting press designed to encapsulate samples into round discs up to 200ºC and 2 metric tons for 50mm for SEM or metallographic samples. 4 sets of mounting dies are included with 25 mm, 30 mm, 40 mm and 50 mm. The touchscreen panel makes operation at ease.

SPECIFICATIONS:

Power
  • 220VAC 50Hz or 60Hz (Please specify frequency upon purchasing)
  • For AC 110V power supply please order a 1500W voltage transformer
  • 1200W (10A air breaker required)
Pressing Die
  • Four sets of mounting dies are included with an ID of 25, 30, 40, and 50 mm
  • Each Die Set include:
    • Die Sleeve: OD 60 mm, Height ~135 mm
    • Upper Pressing Rod: Height ~26 mm
    • Lower Pressing Rod: Height ~26 mm
    • Separating Plate: Height: 8 mm

Control Panel
  • 5" Touch Screen Digital control for setting parameters:
    • Max. 470 Bar for 25 mm die
    • Max: 326 Bar for 30 mm die
    • Max. 183 bar for 40 mm die
    • Max. 118 Bar for 50 mm die
    • Temperature: 100 - 200oC
    • Heating and dwell time: 1 - 999 minute
    • Loading: 200 - 2306 kg ( via hydraulic cylindrical )
    • Pressure: depended on mounting die diameter

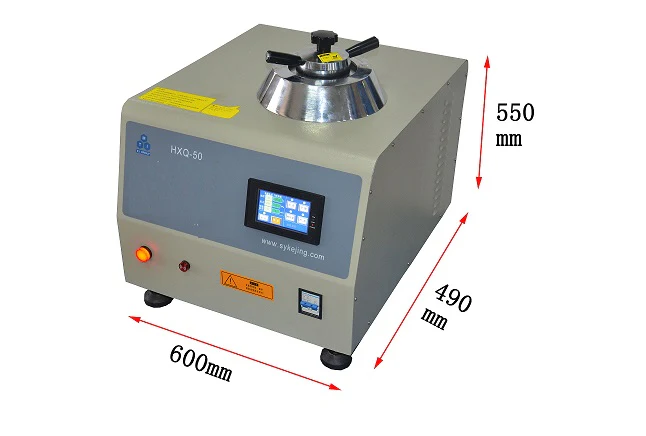

Machine Dimension

Machine Net weight

200 Lb.

Shipping Weight & Dimensions
  • 250 lbs
  • 40" x 30" x 28"

Optional
  • Please order Compression Mounting Powder (5 Lb) optional color of Black, Red, Green - EQ-HM-Powder5L at the related product below
  • A cooling water is required to protect pressing die,  You may use recirculating pump as the link below
Compliance

CE Marked

NRTL certification is available upon request at extra cost
Warranty  One-year limited warranty with lifetime support



$3,494.75

Original: $9,985.00

-65%
Automatic Hot Mounting Press up to 200oC and 2.3 T for Metallographic Samples - HXQ50—

$9,985.00

$3,494.75
