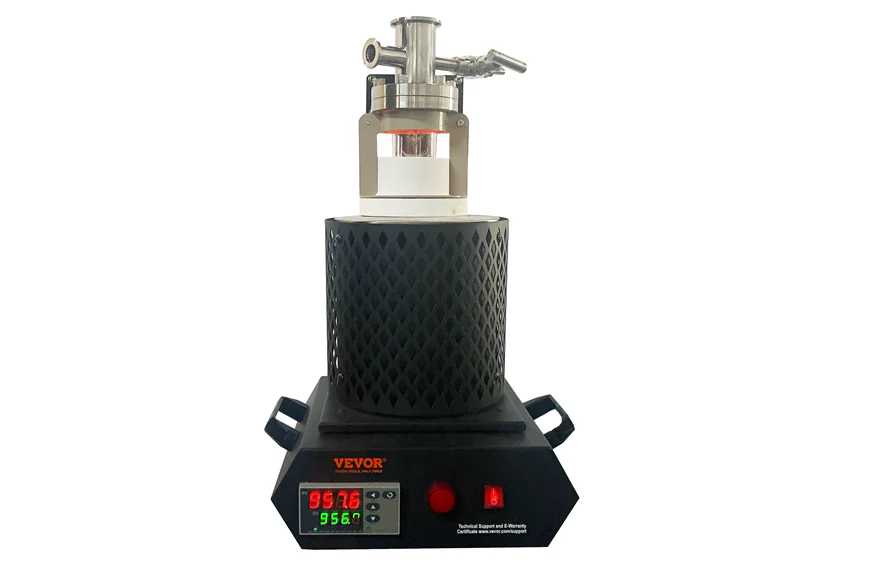

1100C Compact Top-loading Vertical 2" OD Vacuum Tube Furnace - KSL-1100X-HV

KSL-1100X-HV is a compact high vacuum crucible melting furnace designed for melting noble metals such as Al, Au, Ag, Cu, Li, Mg under a vacuum environment up to 10^-6 Torr and heating temperature up to 1100ºC, which can also be used as the annealing and sintering furnace for material research. A 30-segment programmable temperature controller is built-in with +/- 1ºC accuracy.

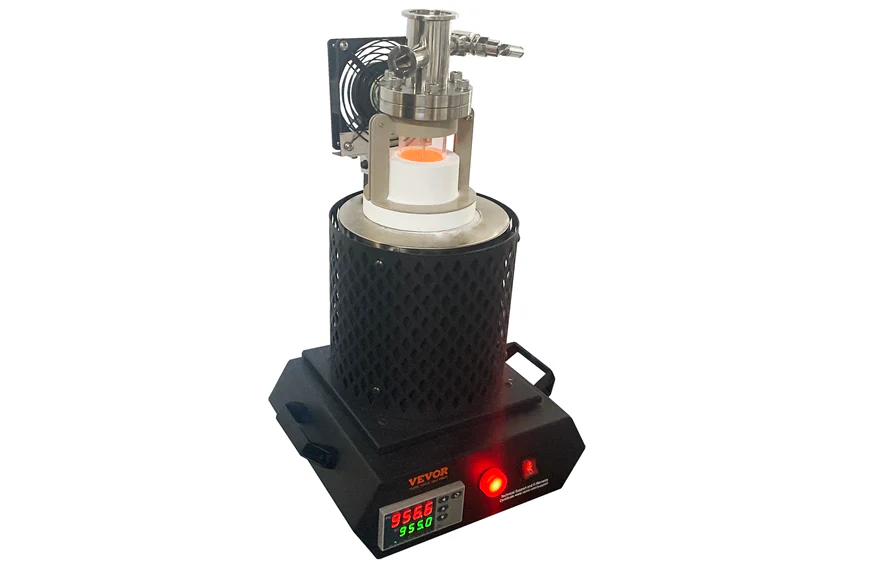

Note: Since May 20, one cooling fan has been added to the top of the furnace to cool the flange better

Specifications:

Features	Heavy-duty heating elements for long-term service with 1100ºC max 2" quartz tube with CF flange and valve for high-vacuum up to 10- 6 torr ( turbopump required) Programmable temperature controller with +/- 1ºC accuracy
Power	110VAC (50/60Hz), single phase 1500W Max. 15A breaker required Power cable and plug included
Processing Tube	OD: 50mm ±0.5mm (1.97") ID: 44mm ±0.5mm (1.73") Length: 263 mm One flat-opened end and one closed-end
Vacuum Flange	SS 316 flange Fluro elastomer (FKM) O-ring Two ports, KF-16 and KF-40, are built into the flange One KF-40 Vacuum Valve is included in the standard package (Pic.2) Optional: KF-16 could be connected to the Inficon Pirani gauge (Pic.3) Optional: KF-40 could be connected to a turbo pump (Pic.4 and 5) Pic.1 Pic.2 Pic.3 Pic.4 Pic.5
Temperature Controller	Precise 30-segment programmable temperature controller PID and Autotune as well as overheating protection +/- 1ºC accuracy
Working Temperature	Continuous: 1000 ºC Max: 1100 °C < 1 hr. For working temperatures over 800ºC, a quartz thermal block is required at an extra cost Mounting a quartz thermal block inside the processing tube
Vacuum & Optional	7.4E-6 hPa (5.6E-6 torr), unloaded, room temperature 4.6E-6 hPa (3.5E-6 torr) after bakeout This tube and flange kit is designed for inserting MTI hybrid lab furnace as picture # left
Compliance	CE CertifiedAn NRTL certificate is available at the extra cost

Product Information

Shipping & Returns

1100C Compact Top-loading Vertical 2" OD Vacuum Tube Furnace - KSL-1100X-HV

Note: Since May 20, one cooling fan has been added to the top of the furnace to cool the flange better

Specifications:

Features	Heavy-duty heating elements for long-term service with 1100ºC max 2" quartz tube with CF flange and valve for high-vacuum up to 10- 6 torr ( turbopump required) Programmable temperature controller with +/- 1ºC accuracy
Power	110VAC (50/60Hz), single phase 1500W Max. 15A breaker required Power cable and plug included
Processing Tube	OD: 50mm ±0.5mm (1.97") ID: 44mm ±0.5mm (1.73") Length: 263 mm One flat-opened end and one closed-end
Vacuum Flange	SS 316 flange Fluro elastomer (FKM) O-ring Two ports, KF-16 and KF-40, are built into the flange One KF-40 Vacuum Valve is included in the standard package (Pic.2) Optional: KF-16 could be connected to the Inficon Pirani gauge (Pic.3) Optional: KF-40 could be connected to a turbo pump (Pic.4 and 5) Pic.1 Pic.2 Pic.3 Pic.4 Pic.5
Temperature Controller	Precise 30-segment programmable temperature controller PID and Autotune as well as overheating protection +/- 1ºC accuracy
Working Temperature	Continuous: 1000 ºC Max: 1100 °C < 1 hr. For working temperatures over 800ºC, a quartz thermal block is required at an extra cost Mounting a quartz thermal block inside the processing tube
Vacuum & Optional	7.4E-6 hPa (5.6E-6 torr), unloaded, room temperature 4.6E-6 hPa (3.5E-6 torr) after bakeout This tube and flange kit is designed for inserting MTI hybrid lab furnace as picture # left
Compliance	CE CertifiedAn NRTL certificate is available at the extra cost
