1700°C Oxygen & Inert Atmosphere-controlled Furnace (8x8x8" , 8 Liter ) - KSL-1700X-O2

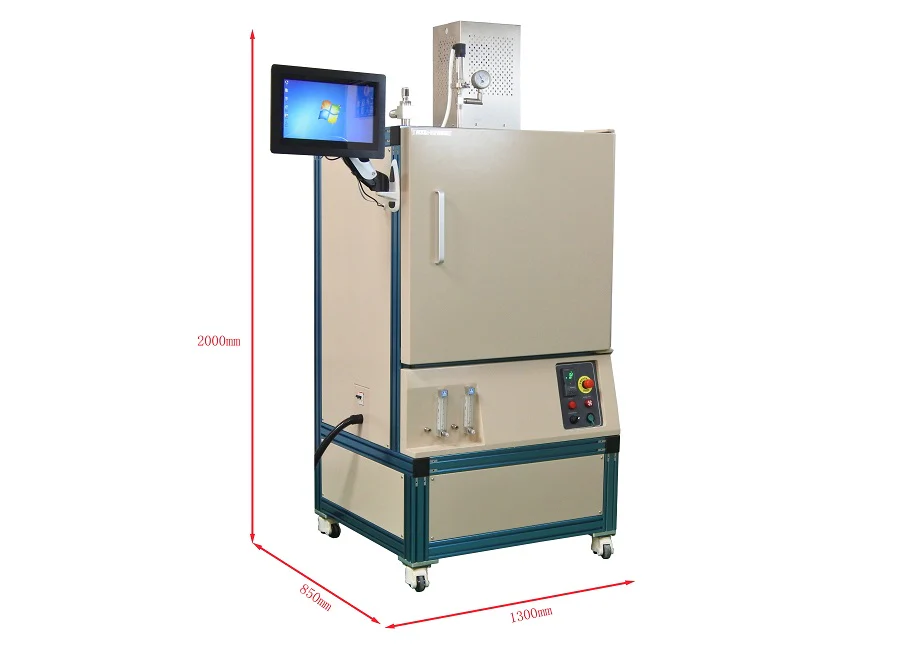

KSL-1700X-O2 is an atmosphere-controlled box furnace designed for materials sintering under air, 100% oxygen, and inert atmosphere. The furnace consists of high-quality alumina fiber bricks and MoSi2 heating elements with a heating chamber of 8"x 8"x8". It is an ideal tool for preparing high purity oxide ceramic materials, especially for high Ni battery cathode materials.

SPECIFICATIONS

Furnace structure	MoSi2 heating elements with Ni coated copper capable connection Double-layer steel structure for maximum vacuum and safety. Water cooling front door and air cooling shell Built-in pressure gauge, vacuum valves, and two gas float meters
Heating Chamber	Heated chamber: 200x 200x 200 mm (8x8x8 inch), 8 Liter Energy-saving 1800 grade fibrous alumina insulation High purity Al2O3 coating Warning: One Al2O3 fibrous door block is included to block heat radiation. Max. sample loading: 100 Kg
Power	AC 208 - 240V single phase, 50/ 60 Hz, 50 A 7.5 KW The power cable is included without a plug.
Heating Elements	6 sets of MoSi2 heating elements are built-in and replaceable Working temperature range: 600°C - 1700°C in air or oxygen Note: the heating elements also can be used under inert gas at 1000oC - 1600 oC) The furnace is not a high vacuum furnace. The vacuum level is about 500 torr at high temperature
Working Temperature	Air and oxygen 800 - 1600°C Nitrogen/Argon depending on the dew point. Max. 1700°C(<60min) Accuracy: +/- 2°C Heating Rate: 5°C / min Thermocouple: dual B type T/C for control and monitor alarm separately
Control Panel	Built-in PC for controlling temperature and pressure Temperature Control: Eurotherm 3000 controllers with a resolution of 0.1 °C 24 segments programmable Protection for over-temperature and current, as well as the thermal couple, broke A secondary temperature controller is built-in for extra over-temperature protection. Pressure Control: Inert gas Purging via manually or an automatic mode Constand pressure during heating High and Low-pressure protection The pressure controllable range: -0.06 to 0.03Mpa. The pressure sensor and pressure controller are installed to control the set pressure constant. The pressure control can be used to perform the following functions: Safety Alarm System: Over-temperature protection Over-pressure and lower pressure alert Low water flow alert Data Collection Recording temperature profile Recording pressure profile All data is saved to the hard disc of the PC Local WIFI operation at a remote distance is available upon request
Vacuum pump & Gas Flow Control	Two large flow meters are installed on the front panel of the furnace for purging via inert gas and filling oxygen gases One vacuum pump is included to enhance purging and keep the chamber below 760 torr Low vacuum 10-1 torr due to fibrous alumina insulation material. Using 5% H2 + Ar will improve oxidation during heating. For oxygen-sensitive material, please use a hydrogen furnace
Water Cooling	A 58L/min recirculating water cooling is required to cool the furnace sealing flange and chamber case. If you don't have a water cooling system in your lab, you may click the pictures below to order:
Compliance	CE Certified NRTL or CSA certification is available upon request at extra cost.
