Digital Pressure Controlled Electric Crimper for CR20XX Coin Cells (Ar Glovebox Compatible)-MSK-160E

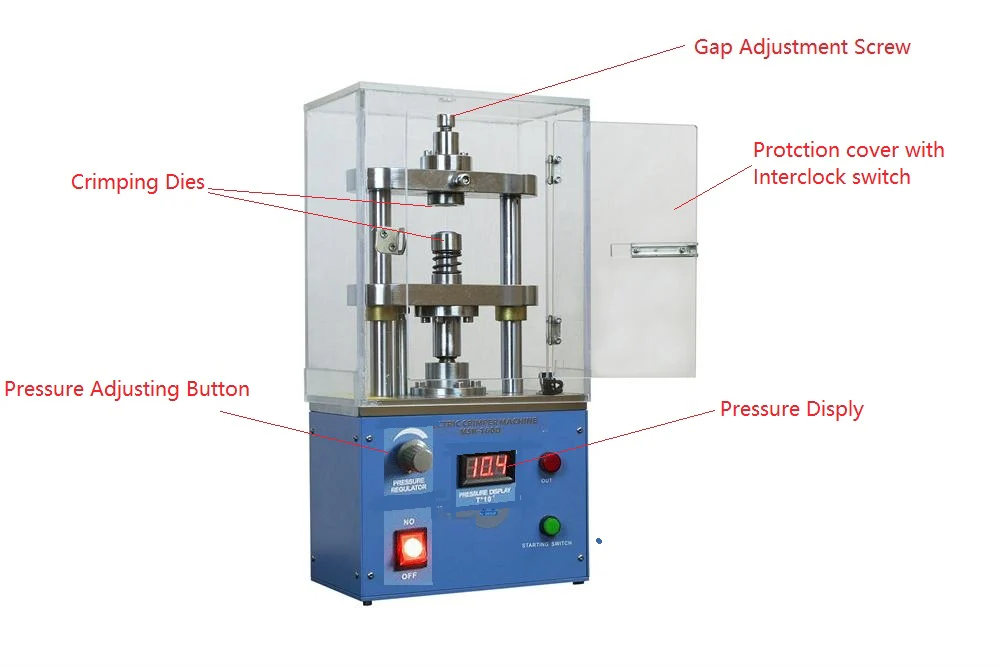

MSK-160E is a compact Pressure Adjustable Electric Crimper for CR2016, CR2025, CR2032, and CR2450 coin cells. A 24VDC motor with a precision load sensor enables the operation inside a glove box under an Ar atmosphere for Li-S, Li Metal Air, and Li half-cell testing. The digital pressure controller can keep the crimping force consistent at all times. The compact size of the crimper allows the user to move it in or out of the airlock chamber of the standard glove-box.
KF40 feedthrough is included for Ar gas glovebox since Jan. 2023

SPECIFICATIONS:

Power	110 - 240V AC (50/60Hz) NRTL certified power adapter for worldwide use 24V DC motor with reducing gear, 15W. The operation is very safe without further certification
Output dimension	O.D +0.15mm after crimping (Original O.D 19.96mm, then output after crimping is about 20.11mm)
Power Cord Extension w/ Feed Through for use in a glove-box	An extension power cord with a KF40 feedthrough is included in the standard package. This extension is required for the following applications: No power source is available inside the glove box, and the customer needs to extend the power cord to the outside of the glovebox, If the equipment is going to be placed in an argon atmosphere, please keep the 24V power adaptor outside of glovebox with the KF40 feedthrough. The 24V adapter is susceptible to arcing in argon. (Nitrogen atmosphere is safe.)
Die Set & Compatibility	The standard package includes one assembling die made of hardened steel for crimping CR2032, 2025, & 2016 coin cells. 100 pcs MTI's CR2032 cases are included in the package for immediate testing Optional crimping and de-crimping die sets are available. Click here to check the price and availability. Optional Crimping Die Core for 3-Electrode 2032 coin cells are available at extra cost. Note: You may adjust the gap adjustment screw to match the coin cell case with a different thickness.
Pressure Control	A built-in load cell with a digital display for pressure measurement and control Pressure accucy: +/- 0.05% FS Pressure adjustment range: 0-1.35T ( 0 - 1350 kgf ) The recommended assembling pressure for CR20XX coin cells should be over 0.8T for MTI's CR2032 cases. Please find the desired pressure by experiment.
Production Output	Pressing die traveling time: approximately 15 ~ 16 seconds one way. Pressing time: approximately 5 ~ 10 seconds. Output rate: approximately 40 seconds for each cell.
Protection Shield	A protection shield/enclosure (plexiglass) with a safety interlock is installed
Compliance	CE Certified NRTL or CSA certification is available upon request at extra cost. Patent Granted: 201120462024.0 for the Coin Cell Case Crimping since July 2012
Maintenance Notes & Warnings	Electrolytes are highly corrosive materials. The die set must be cleaned with alcohol after each use to avoid corrosion In the case a replacement die is needed, please click pic.1 in below to order. The PTFE die (found at the top die) ejects the cell casing after crimping via spring-loaded pressure. Do NOT overtighten the pressure adjustment knob to avoid damaging this PTFE die. To set the proper pressure on the die, loosen the knob all the way until the spring compression is no longer stressed. Then start tightening the knob and stop turning it once the spring compression is felt. This will prevent the PTFE to die from deformation by overpressure. (Please refer to Pic.2 for details. ) Please use MTI Brand Coin Cell Cases only with the crimper. We don't guarantee the crimping quality if other brand cells Pic.1 Pic.2
Application Notes -- How to choose MTI Crimper	MSK-110 is a hydraulic manual crimper. It is suitable to use outside the glovebox. It is a little difficult to operate inside a glove box and it may be risky due to oil leaks for long-term use MSK-110-S is driven by inert gases, which is suitable for use inside a glovebox with N2/Ar and with the faster operation. MSK-160E is driven by electricity and is good for use in the glovebox with N2/Ar. but speed is a little slower than MSK-110-S. It has a compact size and can be transferred via the air-lock chamber of the glove box. Msk-110 MSK-PN110S MSK-160E
