• NRTL Listed AC 100 - 240 V In & DC 24 V Out power adapter is included
• 24V brushless DC motor which can be used under AR gas glove-box
• Safe to use without NRTL certification
• 30W max power

• The vacuum chuck is made of aluminum alloy with the micro-size holes
• Vacuum chuck Area: 190mm x 90mm (L x W). Actual coating area depends on the selected film applicator.
• The heating elements are pre-installed inside the chuck
• The digital temperature controller ( single point ) with +/- 1ºC accuracy
• The maximum temperature is 120 ºC

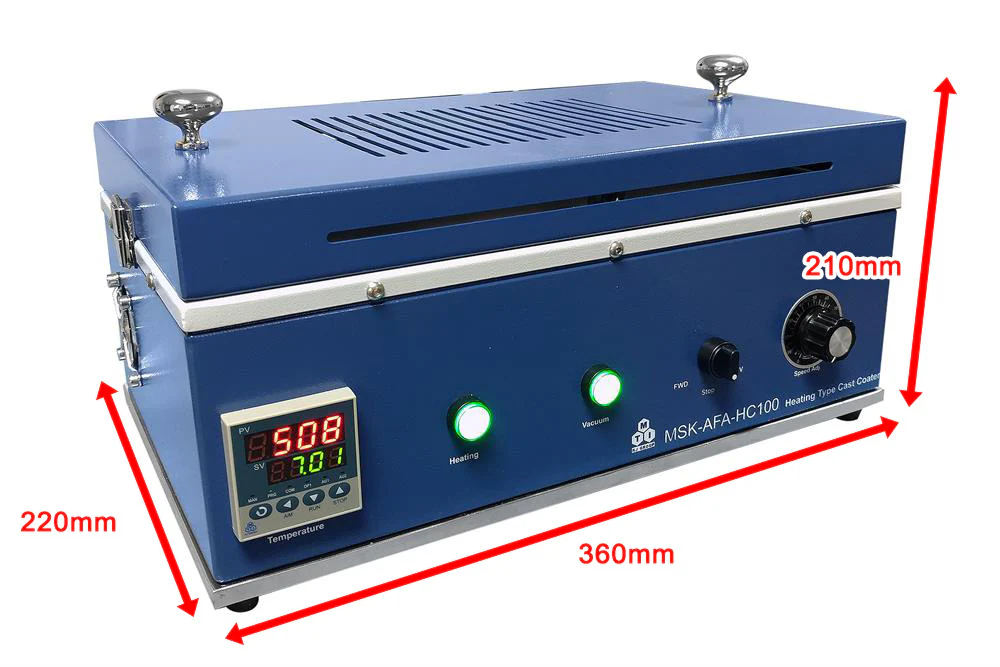

The top cover is included for better drying after coating

• One 24VDC pump is included (Since Aug 2017)
• The vacuum gets power from the coater
• 8mm O.D. tube fitting for vacuum chuck connection

• Built-in pushing bar for using micrometer adjustable applicator
• A fixed-thickness film applicator with the various thickness (50,100,150,200μm) is included for immediate use
• Max. coating width of the standard film applicator is 80 mm
• The DC 24 V motor drives the pushing bar continuously to the adjustable position
• A waste plate for extra slurry is included
• Thickness adjustable film coater is also available at extra cost, please click on Pic.1 or Pic.2 to order
• By clicking Pic.3, you may find the Film applicator with various width
• A hybrid slot die film applicator is available ( click Pic. 4 to order )
• Slot die with precision digital micrometers can be used with this coater. (pic.5)

Pic.1      Pic.2       Pic.3

Pic. 4   Pic.5

A stainless steel slurry boat is included

• 200 mm (L) x 100 mm (W)

• +/- 2 um
• The precise digital thickness gauge (EQ-DTG) can be used to measure the electrode sheet thickness

• Travel Speed: 0 - 50 mm/s adjustable
• Travel Distance: 0 - 360 mm adjustable

• CE certified
• NRTL or CSA certification is available upon request at an extra cost

• Pic.1 and 2 show coated cathode and anode for Li-Ion battery. Please click here to see how to coat an electrode sheet.
• It is recommended to operate the coater under a fume hood. (Click Pic.3 for detail)
• You need a vacuum mixer to remove air bubbles inside slurry (Click Pic.4 for detail)
• You may need a Slurry Viscosity Tester to make coatings consistent (Click Pic.5 for detail)
• You may need a vacuum oven to dry the films and remove binder after coating. (Click Pic.6 for detail)
• Rolling pressing is necessary to ensure good density and adhesion of electrode materials to the current collector substrate after coating. Please select a rolling press from here. (Click Pic.5 for detail)

Pic.1    Pic.2    Pic.3

Pic. 4    Pic.5
