Heating Sealer for Sealing Laminated Aluminum Case of Pouch Cells Optional up to 370mm Width - MSK-140 & MSK-140L

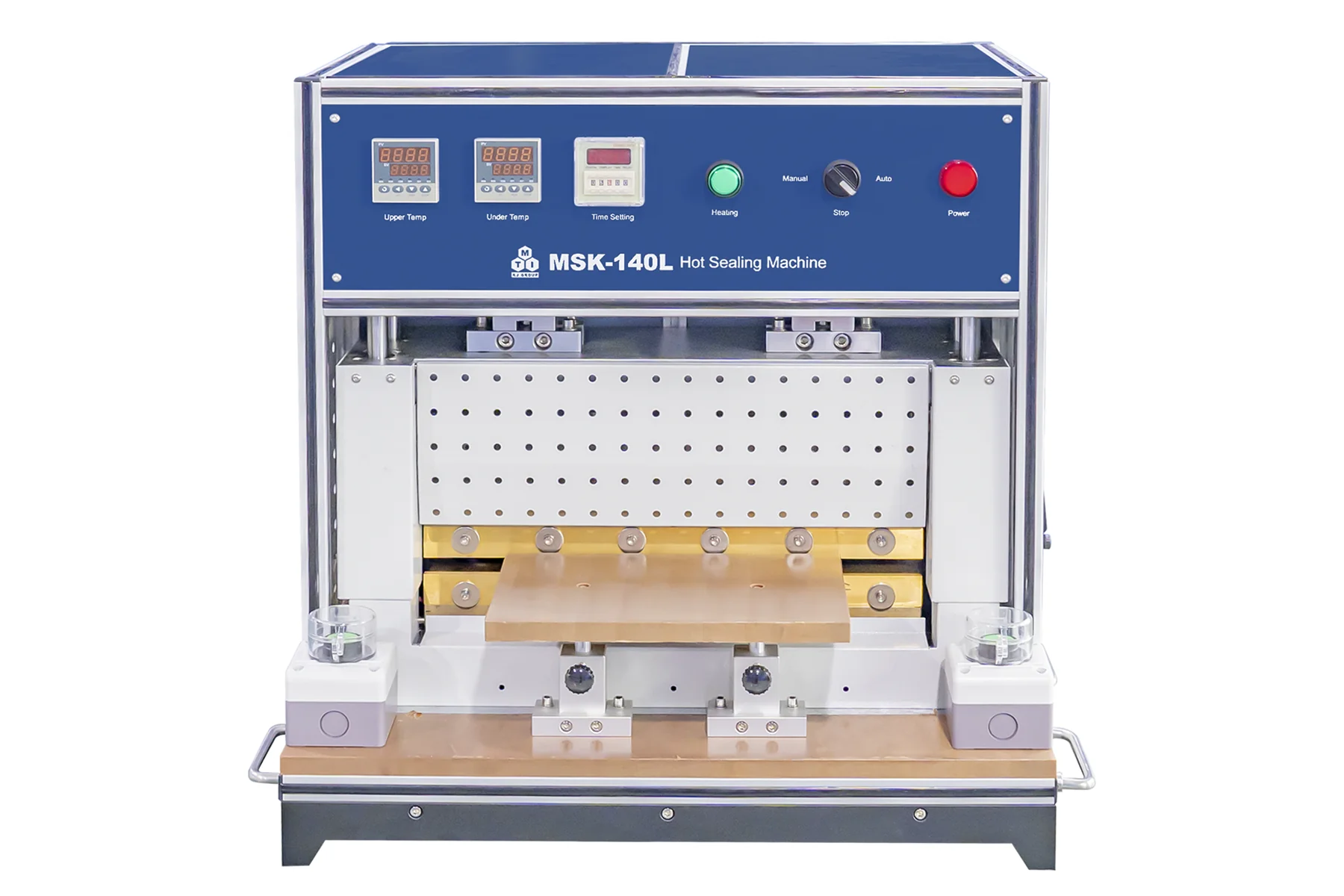

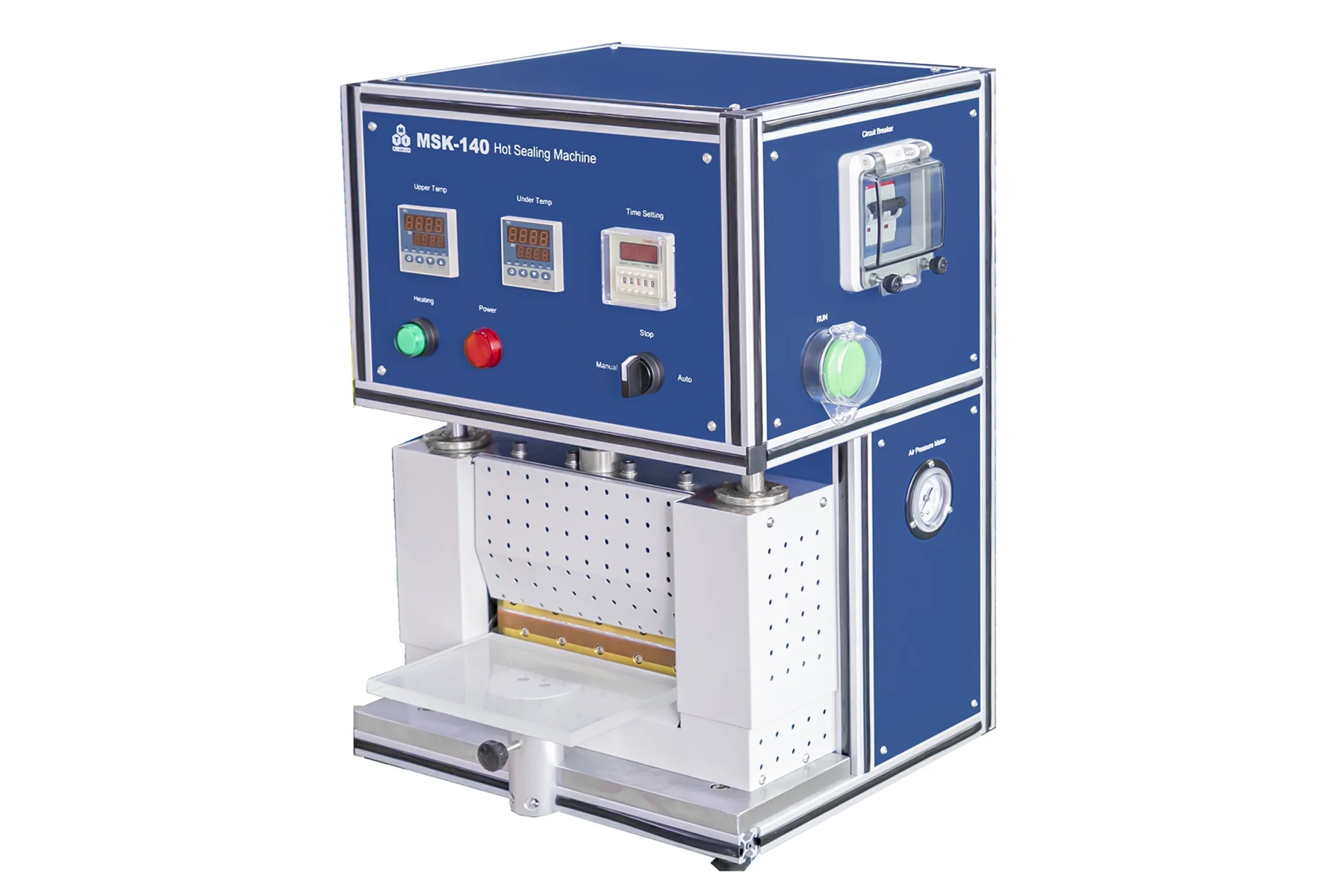

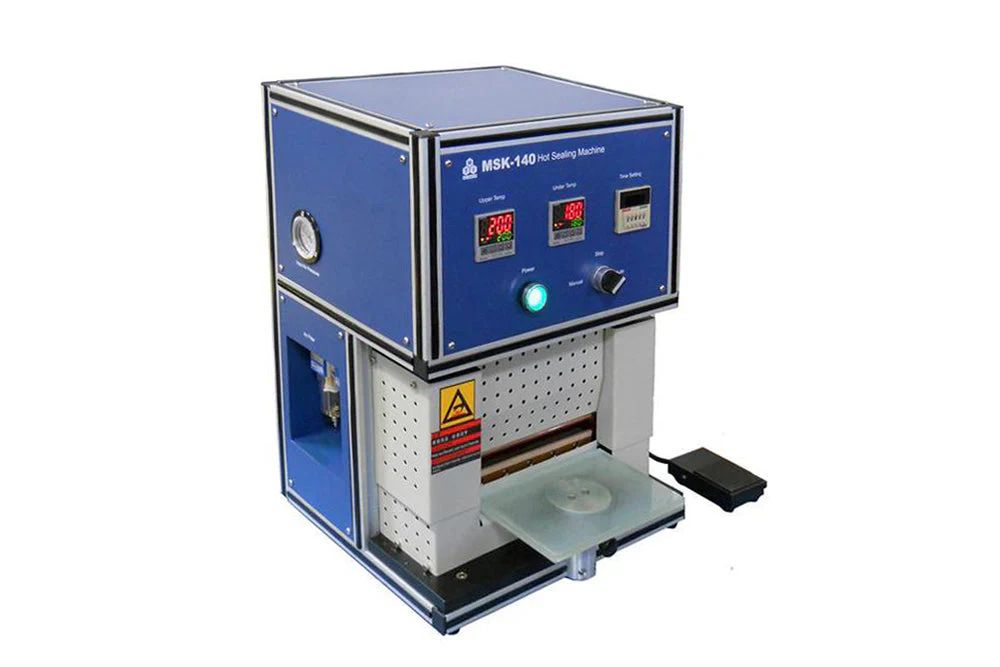

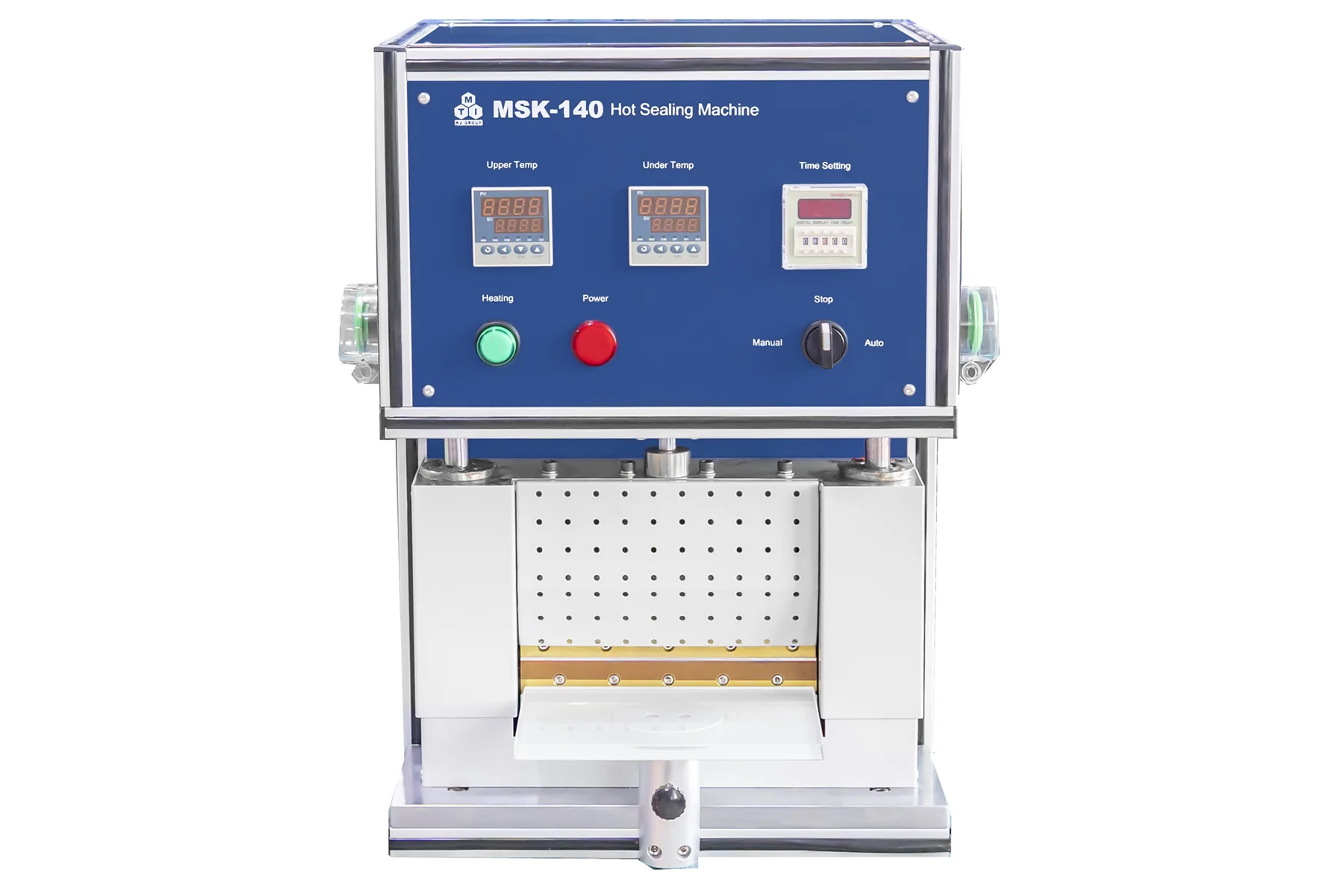

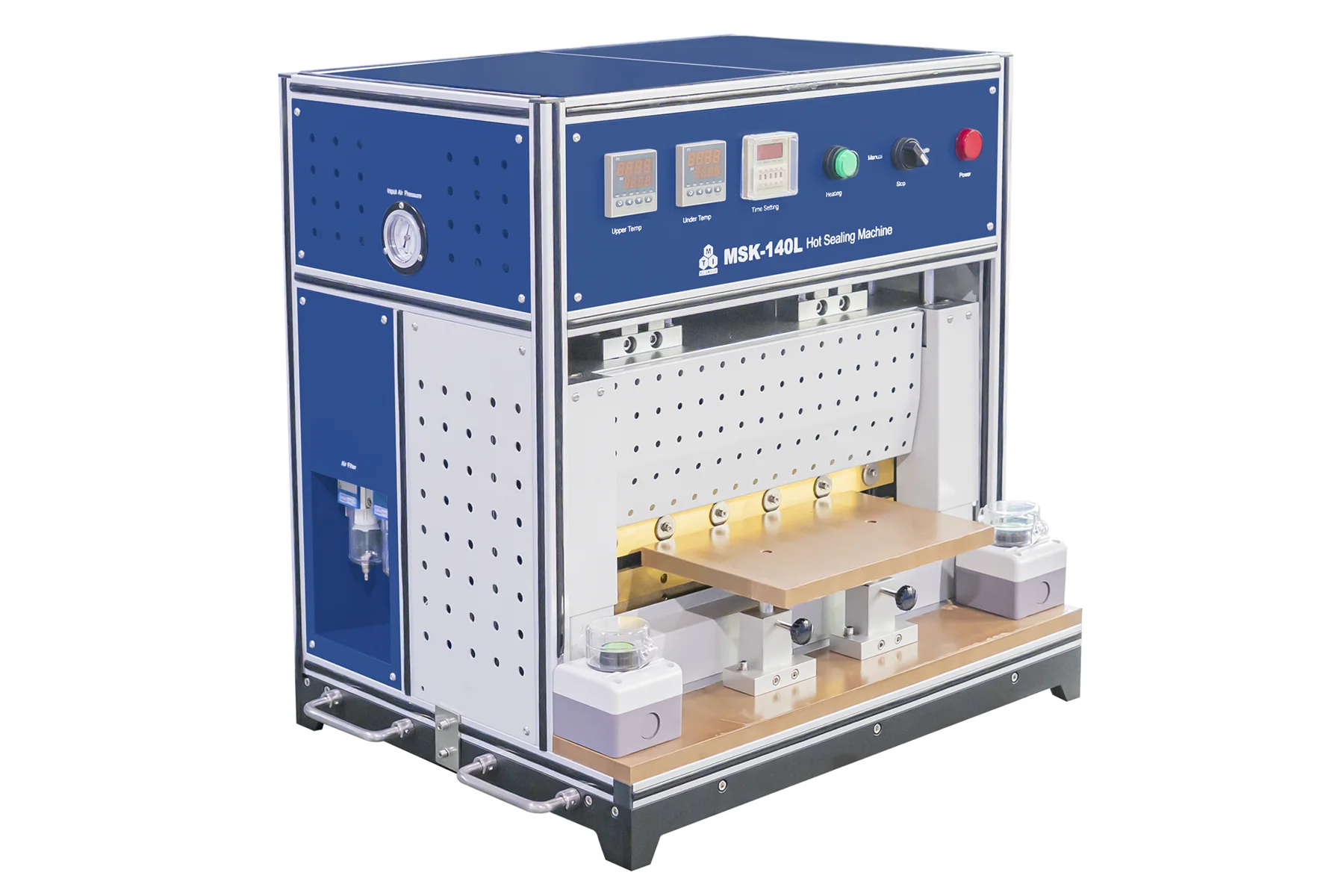

MSK-140 (upgraded from MSK-113A) is a CE Certified compact heating sealer for sealing aluminum-laminated films during pouch cell case preparation. It is used for sealing the side and top of the pouch cell with the tab before injecting electrolyte at the outside of glove box. A new version MSK-140L with a large working area is available now!

SPECIFICATIONS:

Model	MSK-140	MSK-140L
Power Supply	110/220V 50/60Hz Single Phase (Please select in options bar)	100V or 220V 50/60Hz
Sealing Length	190 mm Max.	370mm Max.
Sealing Width	3.2 mm (Can be customized up to 8mm upon request with an extra charge of $1000)	6 mm (Can be customized up to 10mm upon request with an extra charge of $1000)
Max. Power	900W	1200W
Seal Thickness	0 - 0.5 mm
Die Opening	25mm *(140mm back clearance)
Cell Fixture	The cell fixture is included.
Sealing Pressure	0 - 0.7 MPa (0 - 99 psi) adjustable Air compressor tube size is 8. (An air compressor is required, but not included. pls order at your store or the related product below ) Note: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
Sealing Temperature	50 - 250 °C adjustable with controlling accuracy +/-2 °C [However, the suggested temperature for top and bottom blade is 200°C and 180°C, respectively]
Sealing Blade Type	Soft sealing blade (blade with rubber, good for Al case sealing and case with tab in between)
Air Consumption	0.09 L / Sealing
Heating Timer	0 - 99 Seconds Adjustable
Certification	CE Certified NRTL or CSA certification is available upon request at the extra cost.
Warranty	One Year limited warranty with lifetime support
Operation Manual & Video
Application Notes Please click the images to see how it fits in a glove box.	Suggested Sealing Parameter: Upper Heating Blade Temperature: 200°C Lower Heating Blade Temperature: 180°C Pressure: 40 psi Duration: 3 seconds Please wait until both dies reached the Setting temperature, then begin to operate. The compact design enables the operation inside the glove box with Ar atmosphere where Lithium-Sulfur, Lithium Air, Lithium Solid-State, or Li-ion half cell will be assembled.
Sealing Die Tape	Please click here to order our sealing die tape for repair/spare use.
Product Dimensions	320mm(L) x 320mm(W) x 485mm(H)	550mm(L) x 350mm(W) x 523mm(H)
Net Weight	70 lbs	200 lbs
Shipping Weight & Dimension	120 lbs	275 lbs 48" x 40" x 36"
