NASICON-Type LATP (Li1.3AI0.3Ti1.7P3O12) Powder as Solid-State Electrolyte for Li-ion Battery, 100g/bottle-Lib-LATP

Product image 1
Product image 2
Product image 3
Product image 4

NASICON-Type LATP (Li1.3AI0.3Ti1.7P3O12) Powder as Solid-State Electrolyte for Li-ion Battery, 100g/bottle-Lib-LATP

NASICON-Type LATP (Li1.3AI0.3Ti1.7P3O12) Powder as Solid-State Electrolyte for Li-ion Battery, 100g/bottle-Lib-LATP

NASICON-Type LATP (Li.3AI0.3Ti1.7P3O12) powder as solid-state electrolyte for Li-on battery research & education, 100g/bottle-Lib-LATP



Specification

Product Name
  • LATP
Chemical Formula
  • Li.3AI0. 3Ti. 7P3O12
Main Crystalline Phase
  • Match with PDF#35-0754 (Brucker D8 XRD)
Appearance
  • White Powder
Powder Size
  • D50: 600 nm
Ionic Conductivity
  • ≥ 10-4 S/cm @25 ℃
Water Level
  • ≤ 500 ppm
pH
  • ≤ 8.5

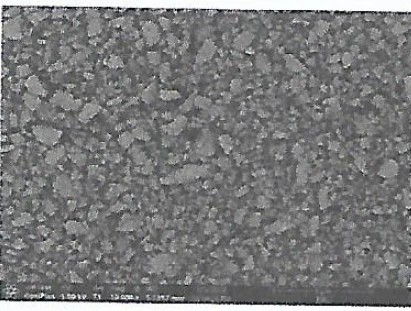

SEM

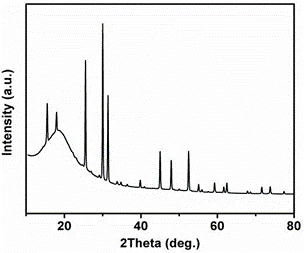

XRD
Impedance Spectrum



Application Notes:

  1. Please click to see Procedure for Preparing Anode & Cathode Electrode Slurry.
  2. Please keep the powder in the vacuum box to avoid moisture.
  3. Please bake the powder in a vacuum oven at 120 -150  °C before making slurry and coating to ensure max. capacity.
  4. The product is for research only, not supply for large quantity.



$174.30

Original: $498.00

-65%
NASICON-Type LATP (Li1.3AI0.3Ti1.7P3O12) Powder as Solid-State Electrolyte for Li-ion Battery, 100g/bottle-Lib-LATP—

$498.00

$174.30

Product Information

Shipping & Returns

Description

NASICON-Type LATP (Li.3AI0.3Ti1.7P3O12) powder as solid-state electrolyte for Li-on battery research & education, 100g/bottle-Lib-LATP



Specification

Product Name
  • LATP
Chemical Formula
  • Li.3AI0. 3Ti. 7P3O12
Main Crystalline Phase
  • Match with PDF#35-0754 (Brucker D8 XRD)
Appearance
  • White Powder
Powder Size
  • D50: 600 nm
Ionic Conductivity
  • ≥ 10-4 S/cm @25 ℃
Water Level
  • ≤ 500 ppm
pH
  • ≤ 8.5
SEM

XRD
Impedance Spectrum



Application Notes:

  1. Please click to see Procedure for Preparing Anode & Cathode Electrode Slurry.
  2. Please keep the powder in the vacuum box to avoid moisture.
  3. Please bake the powder in a vacuum oven at 120 -150  °C before making slurry and coating to ensure max. capacity.
  4. The product is for research only, not supply for large quantity.
