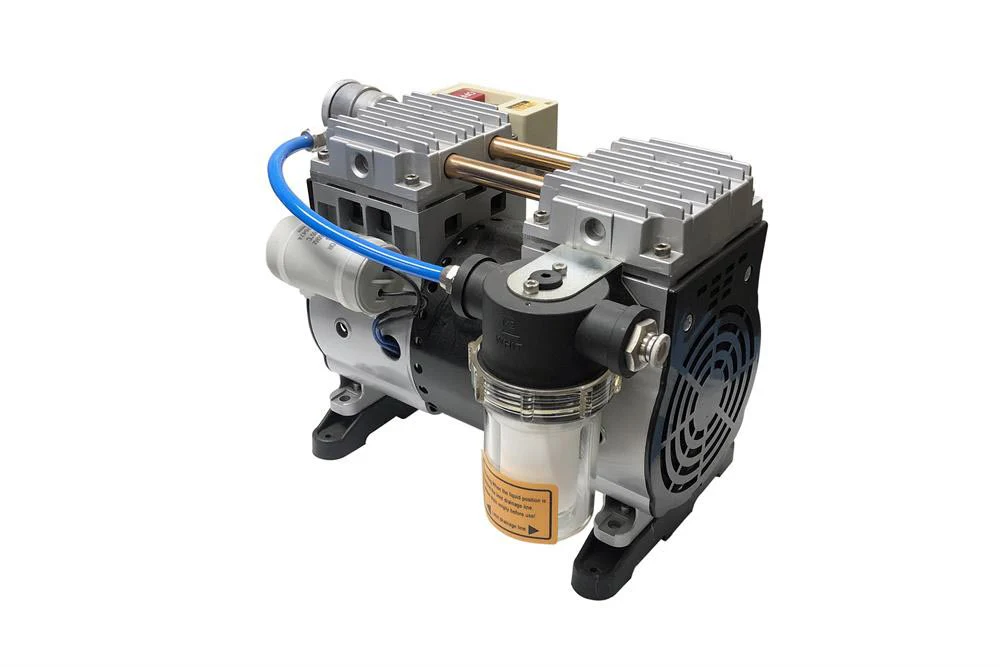

120L/min Oil Free Vacuum Pump - OFP14

Specifications

Features	Compact design and low noise and vibration Efficient cooling system and Maintenance-free Longer running life and Ideal for small gas circulating system Two Rubber Anti-Vibration Pads (Updated from 07/30/2015)
Voltage/Frequencies (V/Hz)	110/220 VAC 50/60Hz (Please select the voltage in the options bar, 220VAC version doesn't include the power plug) Note: As this pump doesn't feature a power switch, we recommend you use an extension outlet that enables remote power ON/OFF control.
Power (Watt)	≤450W
Max. Air Flow	≤7.2m^3/h (120L/min)
Vacuum	80~100 torr (10665.8~13332.2 Pa)
Noise Level	≤60dB(A)
Operation Temperature	5-40°C
Insulation Class	B
Cold Insulation Resistance	≥100MΩ
Dielectric Strength	1500V/50Hz 1min (No Breakdown)
Thermal Protector (°C)	130±5°C (Automatic reset)
Inlet/Outlet connections	1/4-18FPT
Compliance	CE approval
Warning	*Attention:* Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed to be all use for purposes deviating from those mentioned in below, especially: Pumping of corrosive or explosive media. Pumping of condensing vapors. Pumping of liquids. Pumping of dust. Operation with improper high levels of insulated heat input. Operation in potentially explosive areas.

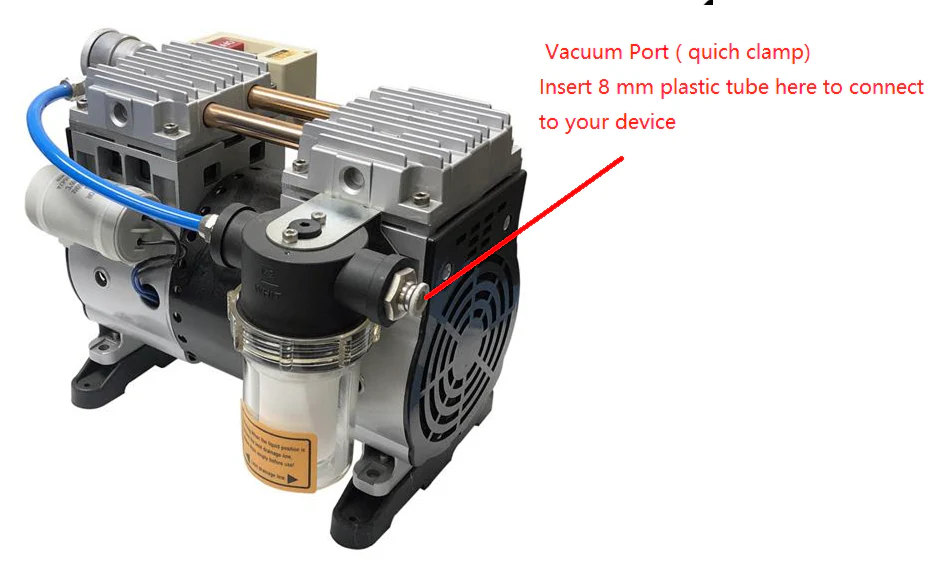

Inlet & Outlet connector	Inlet: one Ø8mm push-to-connect Note: the Ø8mm gas tube is not included. Outlet: One gas exhaust filter (included)

120L/min Oil Free Vacuum Pump - OFP14

Specifications

Features	Compact design and low noise and vibration Efficient cooling system and Maintenance-free Longer running life and Ideal for small gas circulating system Two Rubber Anti-Vibration Pads (Updated from 07/30/2015)
Voltage/Frequencies (V/Hz)	110/220 VAC 50/60Hz (Please select the voltage in the options bar, 220VAC version doesn't include the power plug) Note: As this pump doesn't feature a power switch, we recommend you use an extension outlet that enables remote power ON/OFF control.
Power (Watt)	≤450W
Max. Air Flow	≤7.2m^3/h (120L/min)
Vacuum	80~100 torr (10665.8~13332.2 Pa)
Noise Level	≤60dB(A)
Operation Temperature	5-40°C
Insulation Class	B
Cold Insulation Resistance	≥100MΩ
Dielectric Strength	1500V/50Hz 1min (No Breakdown)
Thermal Protector (°C)	130±5°C (Automatic reset)
Inlet/Outlet connections	1/4-18FPT
Compliance	CE approval
Warning	*Attention:* Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed to be all use for purposes deviating from those mentioned in below, especially: Pumping of corrosive or explosive media. Pumping of condensing vapors. Pumping of liquids. Pumping of dust. Operation with improper high levels of insulated heat input. Operation in potentially explosive areas.
Inlet & Outlet connector	Inlet: one Ø8mm push-to-connect Note: the Ø8mm gas tube is not included. Outlet: One gas exhaust filter (included)

Select Rated Voltage|

From $313.25

Original: $895.00

120L/min Oil Free Vacuum Pump - OFP14—

$895.00

$313.25

Select Rated Voltage|

From $313.25

Original: $895.00

120L/min Oil Free Vacuum Pump - OFP14—

$895.00

$313.25

Specifications

Features	Compact design and low noise and vibration Efficient cooling system and Maintenance-free Longer running life and Ideal for small gas circulating system Two Rubber Anti-Vibration Pads (Updated from 07/30/2015)
Voltage/Frequencies (V/Hz)	110/220 VAC 50/60Hz (Please select the voltage in the options bar, 220VAC version doesn't include the power plug) Note: As this pump doesn't feature a power switch, we recommend you use an extension outlet that enables remote power ON/OFF control.
Power (Watt)	≤450W
Max. Air Flow	≤7.2m^3/h (120L/min)
Vacuum	80~100 torr (10665.8~13332.2 Pa)
Noise Level	≤60dB(A)
Operation Temperature	5-40°C
Insulation Class	B
Cold Insulation Resistance	≥100MΩ
Dielectric Strength	1500V/50Hz 1min (No Breakdown)
Thermal Protector (°C)	130±5°C (Automatic reset)
Inlet/Outlet connections	1/4-18FPT
Compliance	CE approval
Warning	*Attention:* Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed to be all use for purposes deviating from those mentioned in below, especially: Pumping of corrosive or explosive media. Pumping of condensing vapors. Pumping of liquids. Pumping of dust. Operation with improper high levels of insulated heat input. Operation in potentially explosive areas.
Inlet & Outlet connector	Inlet: one Ø8mm push-to-connect Note: the Ø8mm gas tube is not included. Outlet: One gas exhaust filter (included)
