Portable Trace Oxygen Analyzer (0 - 1000ppm) with USB Data Logging & Rechargeable function - EQ-W2000-LD

The W2000 is a microprocessor-based portable trace oxygen analyzer designed for continuous or intermittent monitoring of oxygen concentration in various gas environments. It comes with a full-color backlight display for visibility and ease of use. Oxygen content data is relayed in real time by a precision electrochemical sensor with compensation for temperature variations. Its portable design makes it ideal for monitoring oxygen concentration in annealing, heat treating, and inert gas welding applications.
Warning The sensor should ONLY be used with flowing inert gas. Never use it under vacuum conditions, the sensor would suffer damage otherwise.

SPECIFICATIONS

Features	The precision electrochemical sensor provides precision reading with rapid response time Large color display with user-friendly menu for ease of visibility and use Five Standard Analysis Ranges: 0 to 10ppm/ 100ppm/ 1000 ppm/ 1%/ 25% with Auto-Ranging or Manual Range Mode Onboard data logging function via removable USB Drive (No software needed) Portable design with rugged polypropylene enclosure for use in hard to access areas Built-in rechargeable battery provides portability; universal 100 - 240V AC Adapter is also included for continuous use while plugged in Comes with 1/4" Swagelok fittings for easy connection to gas lines (NOTE: flow rate should be 0.5 - 5 SCFH (w/ Glove Box sensor) or 0.5 - 2 SCFH (w/ Furnace Sensor), and inlet pressure should be between 0 - 50 PSIG)
Analyzer	Measuring Ranges 5 Modes: 0 - 10ppm, 0 - 100ppm, 0 - 1000ppm, 0 - 1%, and 0 - 25% Display Large color screen with backlight Response Time (T90) 10 seconds Calibration Periodically Temperature Compensation Integral Power Rechargeable Battery & 100 ~ 240V AC Adapter Enclosure Rugged polypropylene construction with carry handle
Oxygen Sensor EQ-W1000-Sensor-LD ( Spare sensors can be purchased for $199 each )	Two Sensor Types Available (Please click "EQ-W1000-Sensor-LD" to purchase the needed sensor - NOT INCLUDED):
	Glove Box Sensor Provides the best response when used in enclosed environments where battery R&D is conducted; measures trace oxygen levels in purge gasses (e.g. N2 and Argon). (Image for reference only, Glove Box system is NOT included)	Furnace Sensor Designed for CVD applications when acid and aggressive gasses (e.g. CO2, HCI, HCN, and etc.) will be present. (Image for reference only,
	Micro fuel cell technology Accuracy: +/- 1% Full Scale Range Repeatability: +/- 0.5% Full Scale Temperature Coefficient: 2.54%/ ºC Operating Temperature: 0 to 50 ºC Recommended Gas Flow: 0.5 - 2 SCFH (Standard Cubic Feet per Hour) Furnace Sensor 0.5 - 5 SCFH Glovebox Sensor Humidity: 0 - 100% Relative; Non-Condensing Longevity: 17 - 25 Months

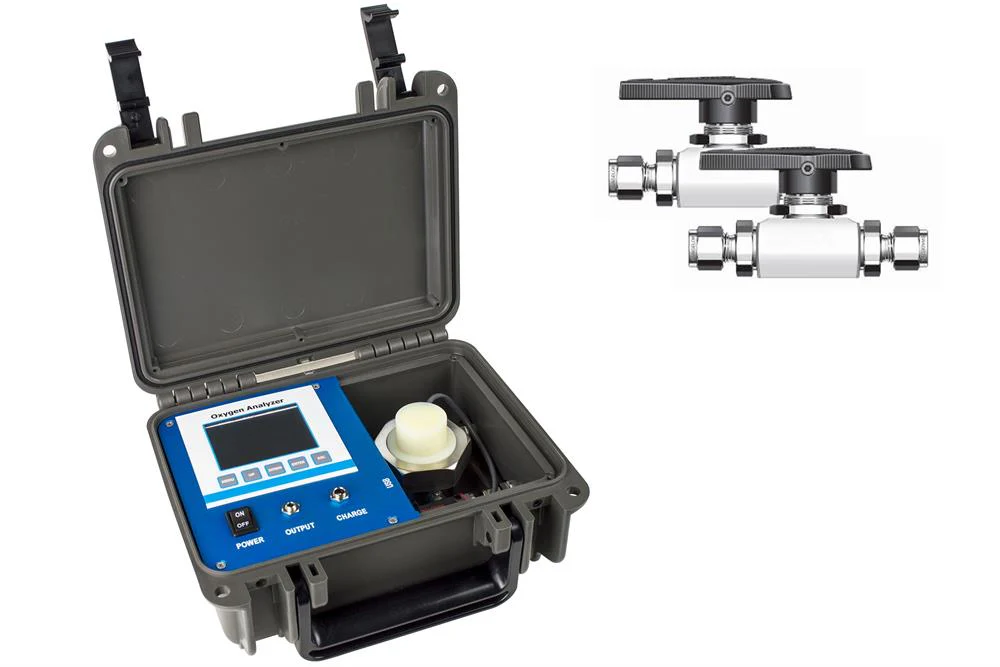

Notes & Warnings	Analyzer is designed for measuring trace oxygen in the presence of gas flow; it may not measure reliably when gas is static. NEVER use the oxygen sensor under vacuum conditions. The vacuum will cause irreversible damage to the sensor. ONLY USE the furnace oxygen sensor with CVD furnace systems to prevent contamination and damage to the sensor. To prevent sensor damage, please use quick ON/OFF valves ( two included per order ) to isolate the sensor from open-air and maintain it with an inert gas at all times. Click the picture below to learn more about this setup: Due to the variations in electronics and sensor technology, minor deviations in O2 reading performance may be experienced when using O2 analyzers or sensors from a different brand, technology, and etc. The oxygen sensor is consumable and not covered by warranty, damage caused by misuse is also excluded from coverage.

Related Products:

Round Wafer Carriers	Membrane Film Boxes	Gel Sticky Boxes	Glove Box / Fume Hood
Vacuum Pen &Tweezers	IC Tray & Plastic Boxes	Vacuum Storage Chambers	Humidity & Oxygen Monitor

STANDARD PACKAGE
Item No.	Description	Quantity
W2000	Analyzer	1
Standard Power Cable	Power Cord ( For the using 220VAC, please order plug separately)	1
