5 x 8 Position PLC Controlled Precision Dip Coater (1-200 mm/min) - PTL-MM02-8P

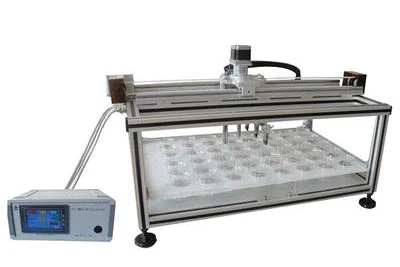

PTL-MM02-8P is a multi-position precision dip coater, which can coat 5 pcs sample in one row at each time, and dip each row of sample up to 8 positions as the program to achieve multi-layer coating.

SPECIFICATIONS:

Working Voltage	110/220V AC switchable, 50/60 Hz
Max. Power Consumption	100W
Max Stroke length	65 mm
Maximum sample load	100 g
Sample Clamp & Sample Size	Sample clamp: 5 pcs included Standard sample size: 65mm L x 25mm W x 1 - 2.5 mm
Control Unit	All parameters are controlled by PLC via Color Touch Screen 6"(L) x 4"(W) Control unit is separated from dip coating device to allow remote operation
Insertion Speed	1 - 200 mm/minute programmable by Touch Screen PLC
Pulling Speed	1 - 200 mm/minute programmable by Touch Screen PLC
Horizontal Moving Speed	50 ~ 500 mm/minute adjustable
Speed Stability	+/- 0.05%
Immersion Container	40 pcs pry-glass breaker ( 100 ml) included with breaker holder Breaker size: 50mm Dia. x 70 mm H ( 100 mL capacity )

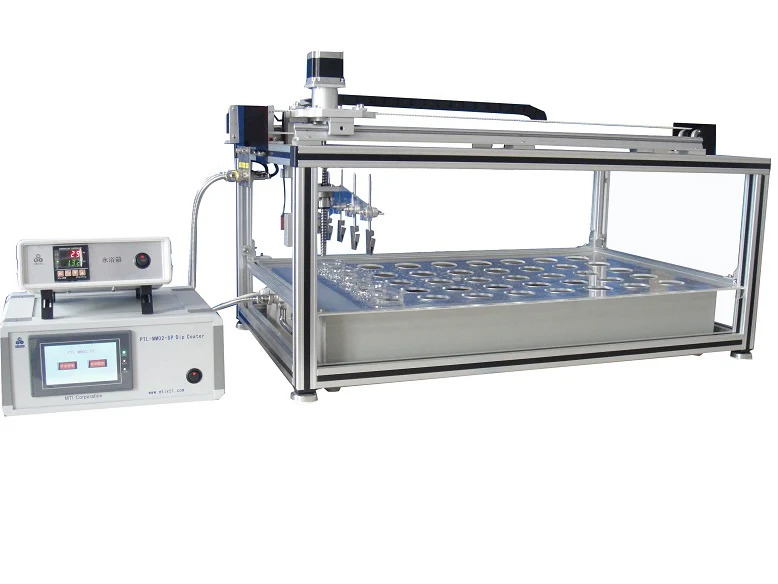

Optional	800W water bath with temperature controller is available at extra cost ( please see picture 1 below) This device can be placed into the glovebox for an oxygen-free environment (Pic. 2) The dip-coater may be placed inside a fume hood or glove box as in picture 3 below- right
Compliance	CE Certified
