Split Electrochemical Flow Cell with Three-Electrode Configuration for Multifunctional (XRD+XAS+Raman) In-situ Research - SEFC-TEC-MF

Product image 1
Product image 2
Product image 3

Split Electrochemical Flow Cell with Three-Electrode Configuration for Multifunctional (XRD+XAS+Raman) In-situ Research - SEFC-TEC-MF

Split Electrochemical Flow Cell with Three-Electrode Configuration for Multifunctional (XRD+XAS+Raman) In-situ Research - SEFC-TEC-MF

SEFC-TEC-MF is a split electrochemical cell with three-electrode configuration for multifunctional (XRD+XAS+Raman) in-situ research, such as battery, electrocatalysis, and others.

SPECIFICATIONS


Cell Features
  •  The cell is made of PEEK and Ti materials
  • Electrolyte will flow into the cell chamber through the reference electrode and then contacting with the working electrode, finally it flow out from the cell chamber through counter electrode for a loop

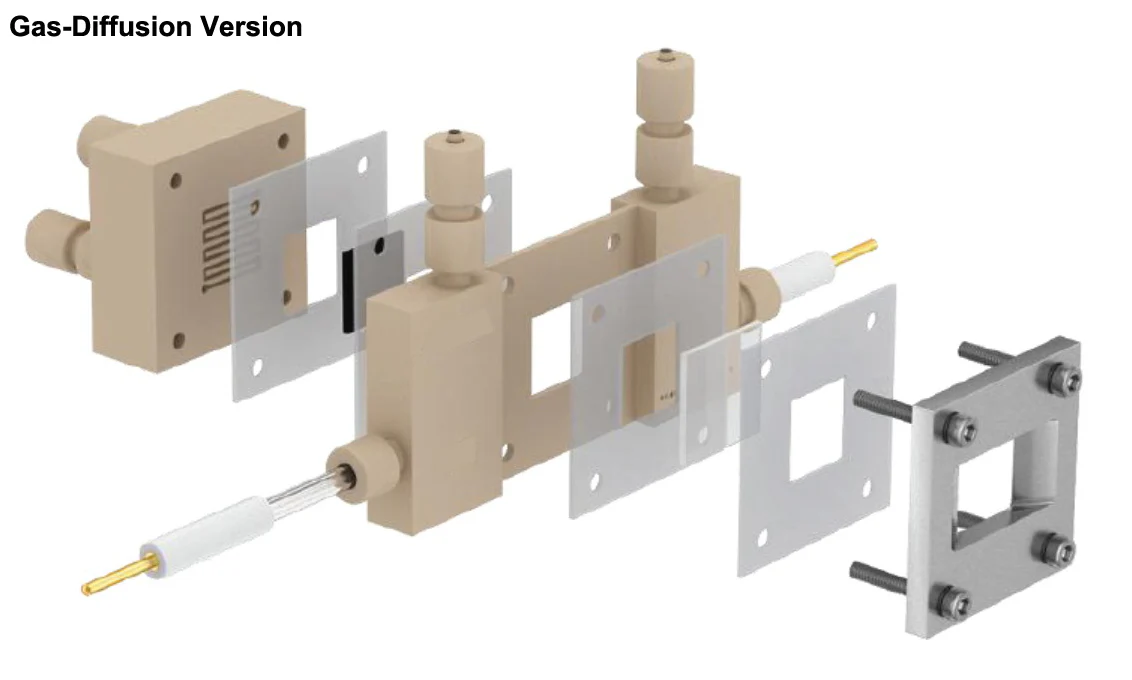

  • Standard version and gas-diffusion version are available for working electrode part.



  • Pt wire and Ag/AgCl are included as counter and reference electrode, respectively.
  • The multifunctional tests are realized by changing the observation window (Raman: quartz;  XRD: Be;  XAS: Kapton). The window is not included (Normally XAS adopts Kapton window and XRD uses Be window).
  • Cell chamber size: 15*15*1.2mm





$3,698.00
Split Electrochemical Flow Cell with Three-Electrode Configuration for Multifunctional (XRD+XAS+Raman) In-situ Research - SEFC-TEC-MF—
$3,698.00

Product Information

Shipping & Returns

Description

SEFC-TEC-MF is a split electrochemical cell with three-electrode configuration for multifunctional (XRD+XAS+Raman) in-situ research, such as battery, electrocatalysis, and others.

SPECIFICATIONS


Cell Features
  •  The cell is made of PEEK and Ti materials
  • Electrolyte will flow into the cell chamber through the reference electrode and then contacting with the working electrode, finally it flow out from the cell chamber through counter electrode for a loop
  • Standard version and gas-diffusion version are available for working electrode part.



  • Pt wire and Ag/AgCl are included as counter and reference electrode, respectively.
  • The multifunctional tests are realized by changing the observation window (Raman: quartz;  XRD: Be;  XAS: Kapton). The window is not included (Normally XAS adopts Kapton window and XRD uses Be window).
  • Cell chamber size: 15*15*1.2mm
