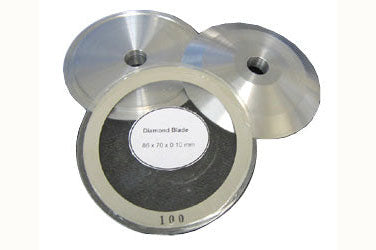

Ultra-thin Diamond Cutting Blades of thickness 0.05-0.2 mm with 0.5" arbor Flange - EQ-EC422

SPECIFICATIONS:

Part Number	EQ-EC-422
Blade Material	Nickel bounded Stainless Steel
Blade Diameter	86mm
Blade Thickness	0.05, 0.08, 0.1, 0.15, 0.2 mm (optional)
Flange center hole	0.5"
Applications	Blade saws applications
Features	0.05~ 0.2 mm Ultra-thin diamond blade with 86 mm O.D x 70 mm I.D. One set of aluminum alloy flange with 0.5" Arbor (83mm O.D) for any dicing saw with 0.5" shaft with 1.27 mm cutting depth High precision cutting for hard and brittle nonmetal materials such as Si, Ge, Quartz, Ceramic, Ferrite, and Glass, etc. Designed for MTI SYJ-400 Dicing saw and Compatible with any dicing saw with 0.5" diameter shaft It can not be used for SYJ-800 dicing saw Click here to order extra diamond blade without flange Warning: Max speeds 30K RPM and must dice with coolant
How to mount 86mm dicing blade
Note	You need dressing the blade from time to time to keep blade sharp. Please click the link below to order

Product Information

Shipping & Returns

Ultra-thin Diamond Cutting Blades of thickness 0.05-0.2 mm with 0.5" arbor Flange - EQ-EC422

SPECIFICATIONS:

Part Number	EQ-EC-422
Blade Material	Nickel bounded Stainless Steel
Blade Diameter	86mm
Blade Thickness	0.05, 0.08, 0.1, 0.15, 0.2 mm (optional)
Flange center hole	0.5"
Applications	Blade saws applications
Features	0.05~ 0.2 mm Ultra-thin diamond blade with 86 mm O.D x 70 mm I.D. One set of aluminum alloy flange with 0.5" Arbor (83mm O.D) for any dicing saw with 0.5" shaft with 1.27 mm cutting depth High precision cutting for hard and brittle nonmetal materials such as Si, Ge, Quartz, Ceramic, Ferrite, and Glass, etc. Designed for MTI SYJ-400 Dicing saw and Compatible with any dicing saw with 0.5" diameter shaft It can not be used for SYJ-800 dicing saw Click here to order extra diamond blade without flange Warning: Max speeds 30K RPM and must dice with coolant
How to mount 86mm dicing blade
Note	You need dressing the blade from time to time to keep blade sharp. Please click the link below to order

Select 86 (OD)x70 (ID) x0.05 (thick) mm

From $104.30

Original: $298.00

Ultra-thin Diamond Cutting Blades of thickness 0.05-0.2 mm with 0.5" arbor Flange - EQ-EC422—

$298.00

$104.30

Select 86 (OD)x70 (ID) x0.05 (thick) mm

From $104.30

Original: $298.00

Ultra-thin Diamond Cutting Blades of thickness 0.05-0.2 mm with 0.5" arbor Flange - EQ-EC422—

$298.00

$104.30

Product Information

Shipping & Returns

Description

SPECIFICATIONS:

Part Number	EQ-EC-422
Blade Material	Nickel bounded Stainless Steel
Blade Diameter	86mm
Blade Thickness	0.05, 0.08, 0.1, 0.15, 0.2 mm (optional)
Flange center hole	0.5"
Applications	Blade saws applications
Features	0.05~ 0.2 mm Ultra-thin diamond blade with 86 mm O.D x 70 mm I.D. One set of aluminum alloy flange with 0.5" Arbor (83mm O.D) for any dicing saw with 0.5" shaft with 1.27 mm cutting depth High precision cutting for hard and brittle nonmetal materials such as Si, Ge, Quartz, Ceramic, Ferrite, and Glass, etc. Designed for MTI SYJ-400 Dicing saw and Compatible with any dicing saw with 0.5" diameter shaft It can not be used for SYJ-800 dicing saw Click here to order extra diamond blade without flange Warning: Max speeds 30K RPM and must dice with coolant
How to mount 86mm dicing blade
Note	You need dressing the blade from time to time to keep blade sharp. Please click the link below to order
