600°C Vertical Crucible Furnace with SS316 Alloy Reactor with 6 tube ports VBF-600S

VBF-600S is a compact top-loading furnace with an SS316 vessel.

SPECIFICATION:

Structure	SS316 case for anti-corrosive processing The crucible furnace has a heating chamber of 4.7" ID x 8" H, (120 mm ID x 200 mm H) The separated temperature controller for remote operation The compact furnace can be put in the glovebox via an antechamber The furnace includes an SS316 tube and an ISO 80K flange with 6 tube fittings An alumina spacer is included to isolate the temperature from the heating chamber
Power	Choice of working voltage AC 110-120V, Single Phase, 50/60Hz, 20A, 1.5KVA Max. AC 208-240V, Single Phase, 50/60Hz, 15A, 1.8KVA Max.
Max. Temperature	Continuous: 600°C
Max. Heating Rate	20 °C/min Max.

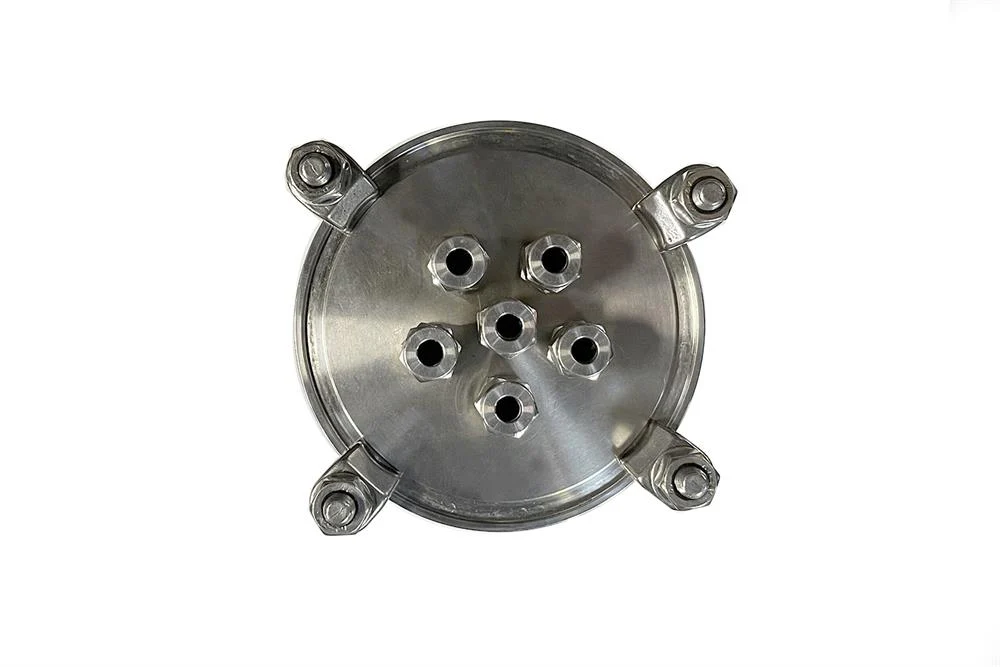

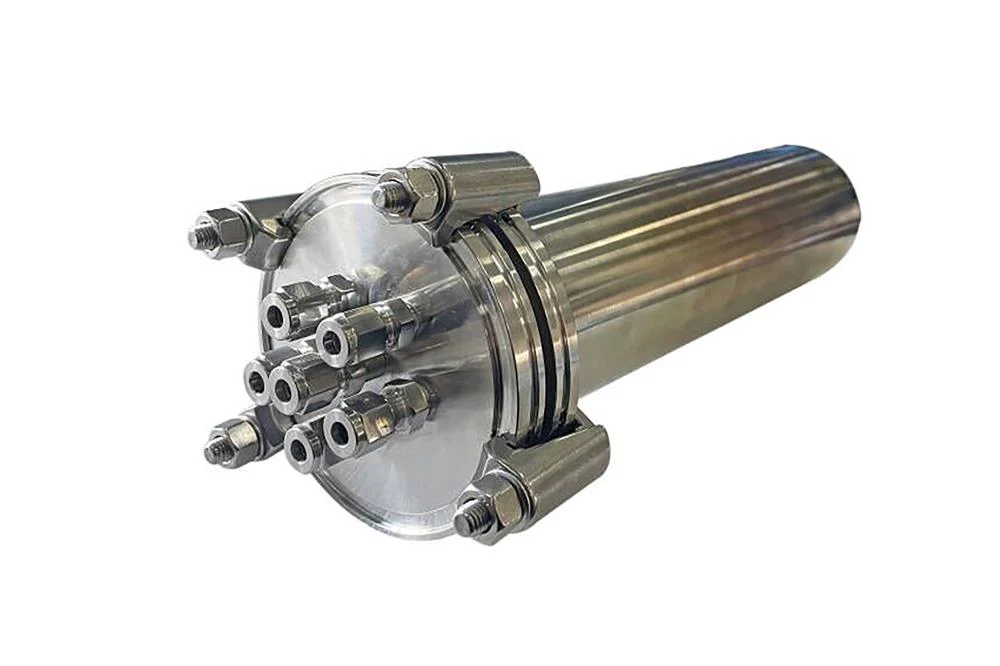

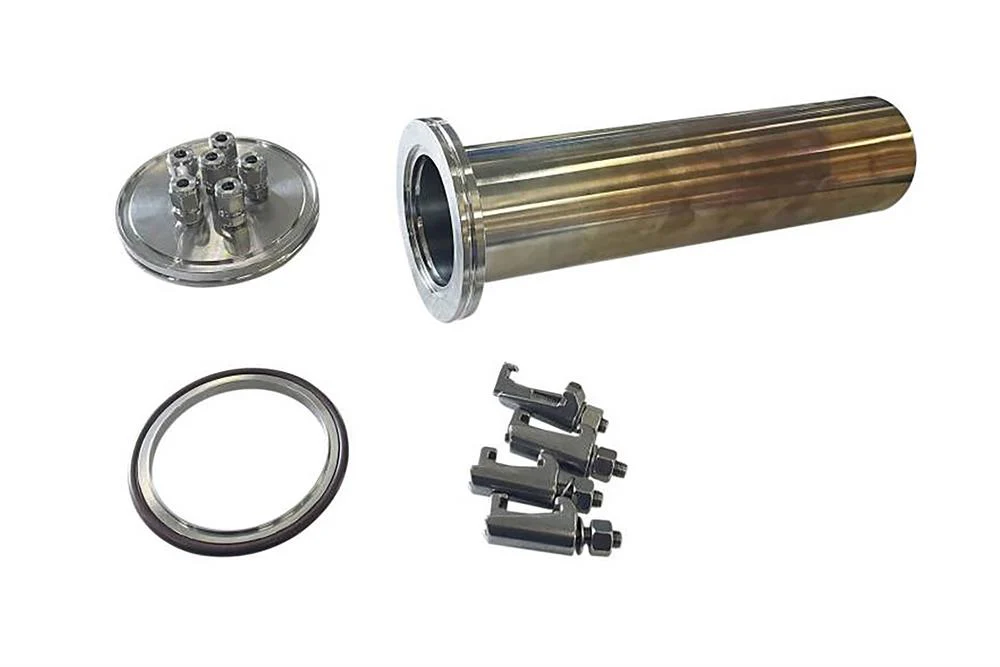

Reaction Vessel	The reaction vessel is made of SS 316. DN80ISO-K flange with six 1/4" compression tube ports. Tube dimension: Ø 76 x Ø 70 x D 290 mm Max. Vacuum: 10-6 torr by turbo pump Max. positive pressure: 0.2 Mpa ( 2 bar
Temperature controller	One digital temperature controller is built in with an accuracy of ±1°C PID automatic control and auto-tune function. 30 programmable segments for precise process Built-in protection for overheating and broken thermocouples. Two Omega K-type thermocouples are included One for furnace temperature control One for temperature monitoring inside the vessel. RS485 port is included for the remote control.
Dimension	Control Unit: 340mm L x 300mm W x 145mm H Furnace: 350mm L x 265mm W x 540mm H
Shipping package size	40" x 23" x 31"
Shipping weight	109 lbs
Warranty	One-year limited warranty (The warranty does not cover consumable parts)
Certificate	CE Certified NRTL Certification is available upon request, additional charges will apply

Product Information

Shipping & Returns

600°C Vertical Crucible Furnace with SS316 Alloy Reactor with 6 tube ports VBF-600S

VBF-600S is a compact top-loading furnace with an SS316 vessel.

SPECIFICATION:

Structure	SS316 case for anti-corrosive processing The crucible furnace has a heating chamber of 4.7" ID x 8" H, (120 mm ID x 200 mm H) The separated temperature controller for remote operation The compact furnace can be put in the glovebox via an antechamber The furnace includes an SS316 tube and an ISO 80K flange with 6 tube fittings An alumina spacer is included to isolate the temperature from the heating chamber
Power	Choice of working voltage AC 110-120V, Single Phase, 50/60Hz, 20A, 1.5KVA Max. AC 208-240V, Single Phase, 50/60Hz, 15A, 1.8KVA Max.
Max. Temperature	Continuous: 600°C
Max. Heating Rate	20 °C/min Max.
Reaction Vessel	The reaction vessel is made of SS 316. DN80ISO-K flange with six 1/4" compression tube ports. Tube dimension: Ø 76 x Ø 70 x D 290 mm Max. Vacuum: 10-6 torr by turbo pump Max. positive pressure: 0.2 Mpa ( 2 bar
Temperature controller	One digital temperature controller is built in with an accuracy of ±1°C PID automatic control and auto-tune function. 30 programmable segments for precise process Built-in protection for overheating and broken thermocouples. Two Omega K-type thermocouples are included One for furnace temperature control One for temperature monitoring inside the vessel. RS485 port is included for the remote control.
Dimension	Control Unit: 340mm L x 300mm W x 145mm H Furnace: 350mm L x 265mm W x 540mm H
Shipping package size	40" x 23" x 31"
Shipping weight	109 lbs
Warranty	One-year limited warranty (The warranty does not cover consumable parts)
Certificate	CE Certified NRTL Certification is available upon request, additional charges will apply
