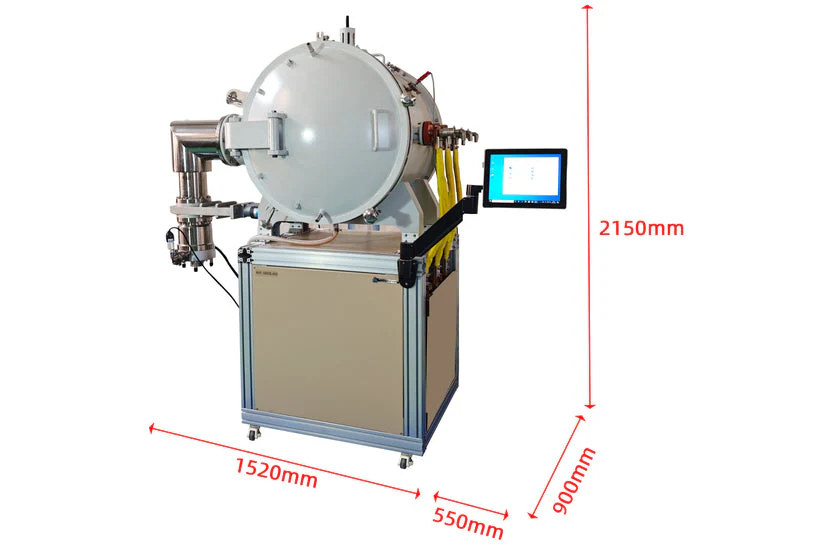

HVF-1600X-64 is a high-vacuum chamber furnace with a water-cooled wall and an effective heating chamber of 400x400x400mm ( 64 L) . Maximum working temperature of 1600°C. It is designed for high-vacuum heating treatment of small samples in a well-defined, clean environment.
It features:

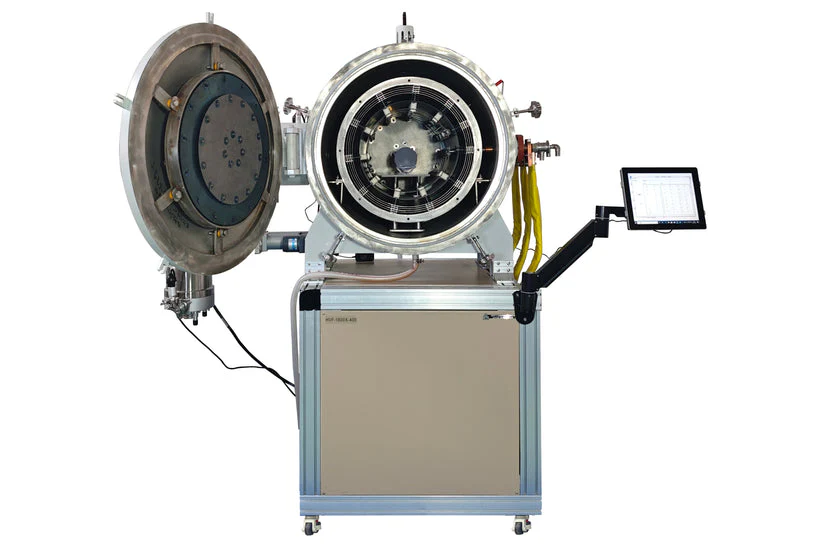

  • Water-cooled 304 SS chamber
  • All metal thermal insulation and heating elements are designed for high vacuum conditions

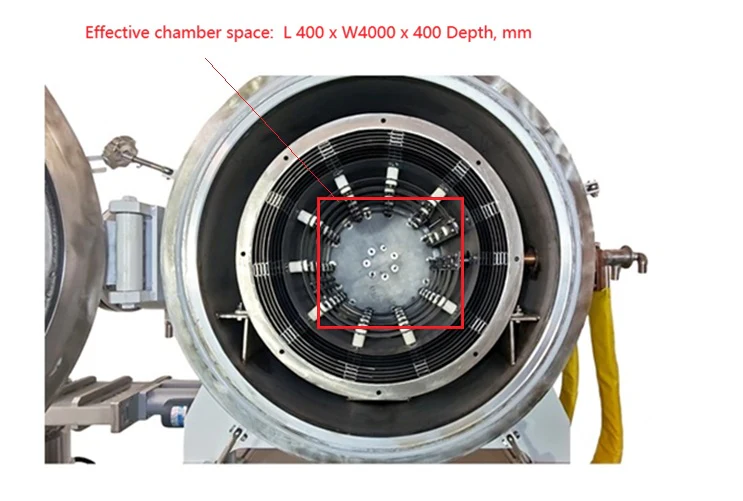

  • L400 x W400x Depth 400 mm effective heating  zone  ( ~64L)
  • Ultimate vacuum <1e-6 torr
  • Compatible gas: Ar, N2, H2, etc.
SPECIFICATIONS:
Power
  • 460 VAC, 3-phase, 50/60Hz
  • 100kW
Vacuum Chamber
  • Electropolished water-cooled stainless steel 304 vacuum chamber.
  • Water-cooled load-lock door
  • Two water-cooled electric feedthroughs
  • 6-layer all-metal thermal reflection sheaths
  • Molybdenum sample stage
  • DN160CF port for vacuum generation
  • DN100CF manual gate valve
  • DN40KF port for ionization gauge
  • DN16KF port for convection vacuum gauge
  • Two 1/4" bellow-sealed needle valves (VCR) for gas inlet and outlet
  • Ultimate vacuum <1e-5 torr by 700L/s turbopump
  • Max working pressure <1.5 bar
Heating Unit
  • Tungsten heating coils
  • Effective eating area:  L 400 x W400 x Depth 400 ， mm
  • ±8°C temperature uniformity
  • Type B thermocouple
  • Maximum working temperature <1600°C
  • Maximum heating rate <10°C
    Temperature Control

    • Eurotherm EPC 3000 series
    • PID automatic temperature control loop
    • 28-segment programmable temperature profile
    • Temperature accuracy: ±1°C
    • RS485, MODBUS RTU for remote communication
    Vacuum Gauge (Optional)
    • InstruTech IGM402 hot cathode ion gauge (1.00E-09 Torr to 1,000 Torr)
    • InstruTech convection pressure gauge
    Water Chiller (Optional)

    • Power Supply: 380-415 VAC or 460-480 VAC 3-phase, 50/60 Hz

    • Power: 7.5-8.25 KW

    • Working Current: 3.4~18.1A

    • Cooling Capacity: 15 kW

    • Water Tank Capacity: 70L

    • Inlet and Outlet: G1"

    • Maximum Pump Water Flow Rate: 75L/min
    Vacuum Pump (optional)
    • 260L/s Pfeiffer Vacuum Turbomolecular pump
    • 240L/min rotary vane backing pump
    • 200L/min Pfeiffer Vacuum dry scroll pump

    Compliance
    • CE certified
    • NRTL or CSA certification is available upon request at an extra cost



    $192,500.00

    Original: $550,000.00

    -65%
