YIG single crystal substrate, two sides polished, (111), 5 mm dia. x 0.35 mm

Product image 1
Product image 2

YIG single crystal substrate, two sides polished, (111), 5 mm dia. x 0.35 mm

YIG single crystal substrate, two sides polished, (111), 5 mm dia. x 0.35 mm

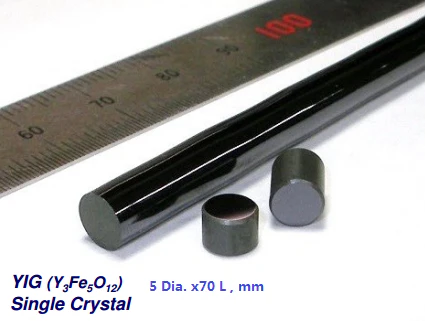

YIG (Yttrium Iron Garnet, Y3Fe5O12) single crystal is key isolator material for Mid-IR. MTI supplies high purity YIG Boule with the Diameter up to 5 mm and the Length up to 60 mm upon customer request.



Specifications
  • YIG (Yttrium Iron Garnet) single crystal   grown by floating zone technique )
  • Composition:                                Y3Fe5O12
  • Oriention:                                     <111>
  • Size:                                           5 mm dia. x 0.35 mm
  • Polsih:                                        Two sides polished
  • Growth Method:                            FZ growth
  • Crystal Structure:                         Cubic
  • Density:                                       5.17 g/cm^3
  • Melting Point:                               1555°C
  • Lattice Constant:                          1.24 nm
  • Transmittance (*Bulk / Uncoated):  >75% at 2-4 µm;  >70% at 4.5 µm
YIG



Related Products

Thin Films  A-Z

Crystal wafer A-Z

Plasma Cleaner

 Wafer Containers

Dicing saw

Film Coater

$356.65

Original: $1,019.00

-65%
YIG single crystal substrate, two sides polished, (111), 5 mm dia. x 0.35 mm—

$1,019.00

$356.65

Product Information

Shipping & Returns

Description

YIG (Yttrium Iron Garnet, Y3Fe5O12) single crystal is key isolator material for Mid-IR. MTI supplies high purity YIG Boule with the Diameter up to 5 mm and the Length up to 60 mm upon customer request.



Specifications
  • YIG (Yttrium Iron Garnet) single crystal   grown by floating zone technique )
  • Composition:                                Y3Fe5O12
  • Oriention:                                     <111>
  • Size:                                           5 mm dia. x 0.35 mm
  • Polsih:                                        Two sides polished
  • Growth Method:                            FZ growth
  • Crystal Structure:                         Cubic
  • Density:                                       5.17 g/cm^3
  • Melting Point:                               1555°C
  • Lattice Constant:                          1.24 nm
  • Transmittance (*Bulk / Uncoated):  >75% at 2-4 µm;  >70% at 4.5 µm
