1200 °C Max. Compact SPS Furnace up to 100 MPa YLJ-SPS-1200

1200 °C Max. Compact SPS Furnace up to 100 MPa YLJ-SPS-1200

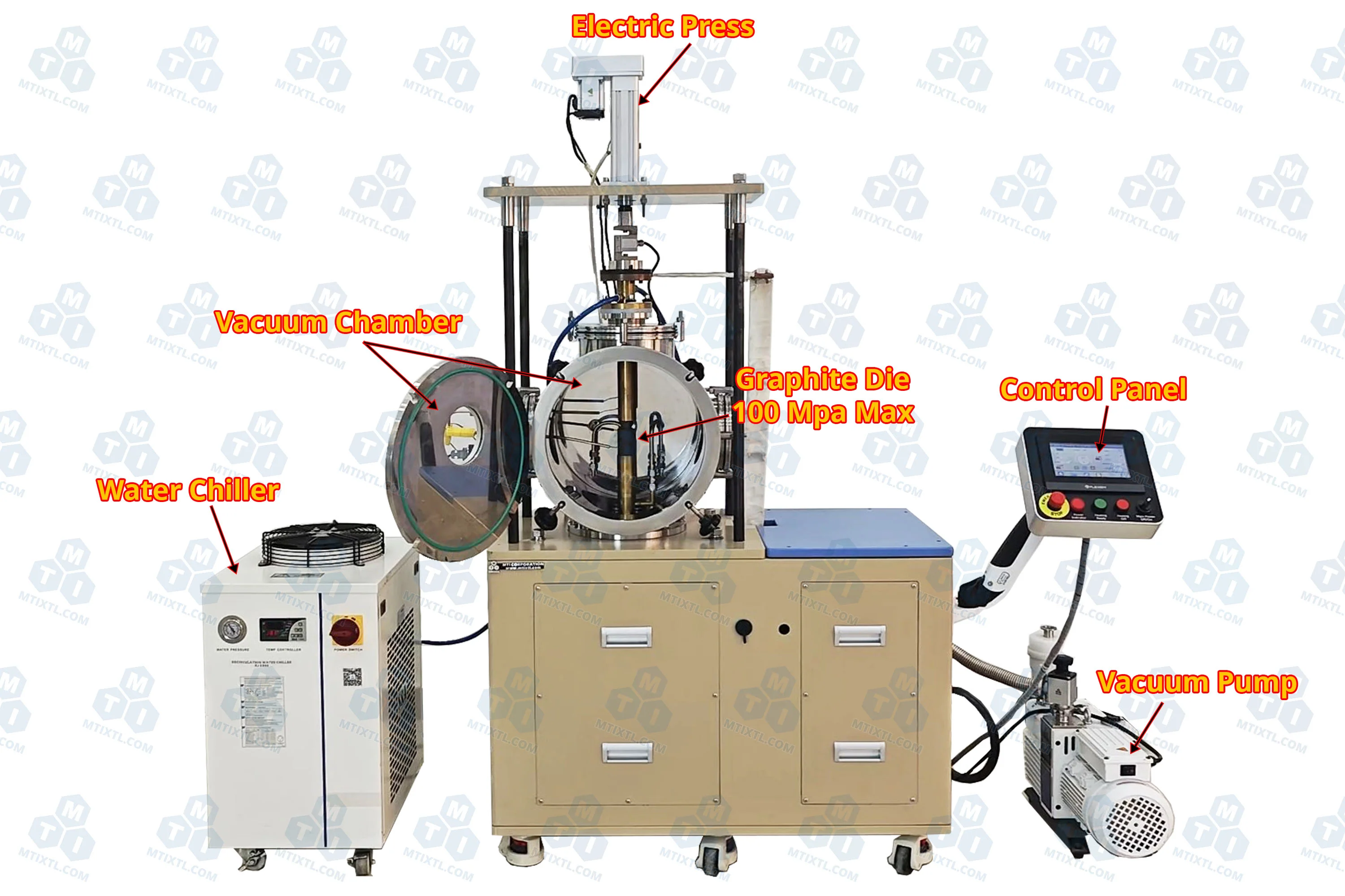

 YLJ-SPS-1200 is a low-temperature & low-cost SPS furnace with up to 1200 °C and 100 MPa Pressure. It is designed to press a 6 - 12.7 mm diameter pellet for most battery, thermal, electric, and metallic materials.


SPECIFICATIONS:

Furnace Power
  • 208 - 240 VAC, 50/60Hz, single phase
  • 10 kW
Pressure & Pressing Die
  • Precision servo motor to apply load to the graphite die up to 2000 Kgf
  • PID control pressure to provide constant pressure with +/- 0.5 Kg accuracy
  • One graphite die with an ID of 12.75 mm is included.  Customized die is available upon request
  • Max.. pressure of graphite die: 100 MPa

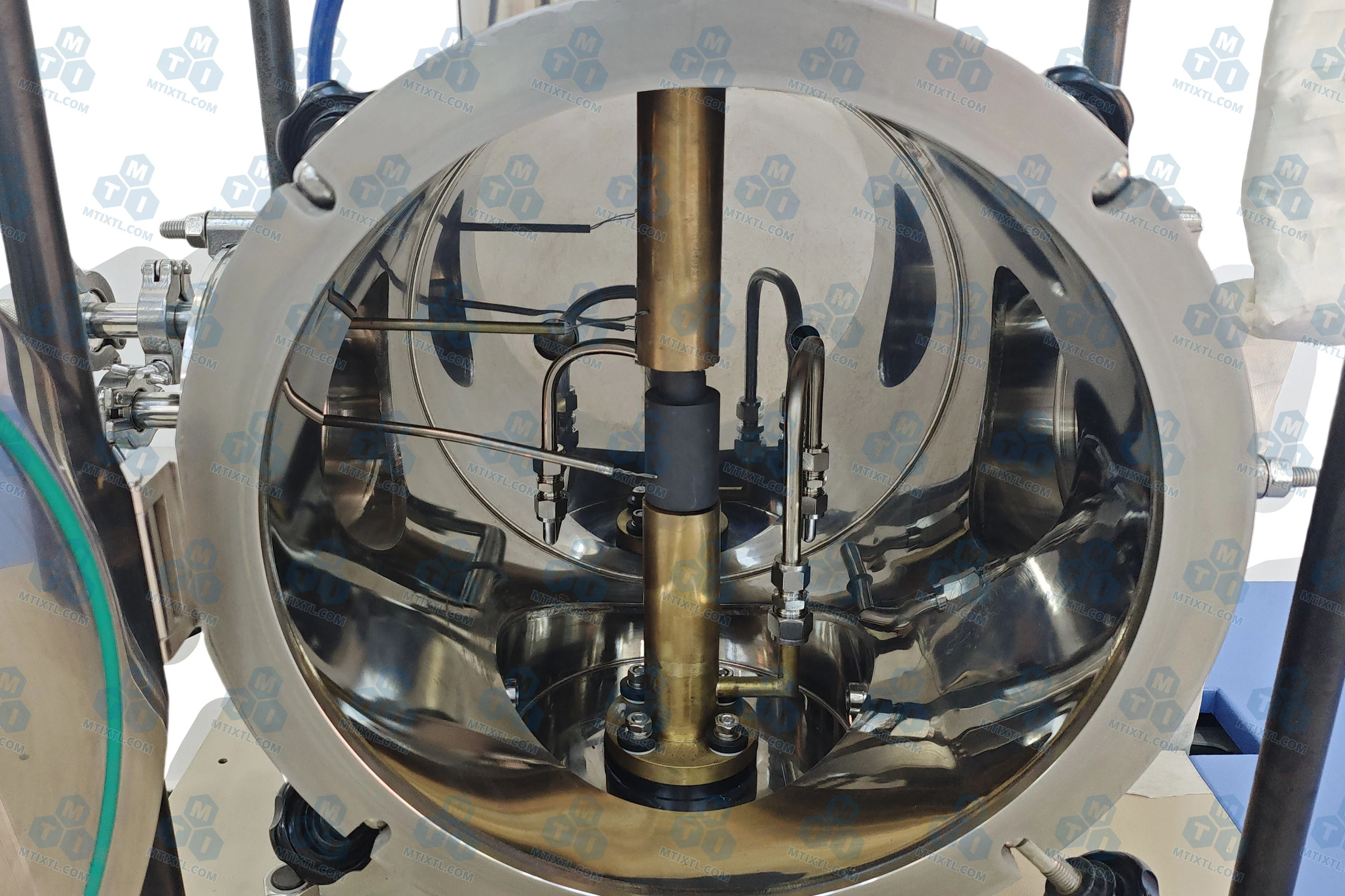

Vacuum Chamber
  • The vacuum chamber is made of stainless steel
  • Vacuum Chamber: Ø315 mm × 315 mm H (inner dimension)
  • One Ø120 mm quartz observation window.
  • One KF25 and one KF40 vacuum port are built at the back of the chamber
  • DN160 ISO-K port is built on the left of the chamber for connection of a turbopump
  • Two KF16 and a KF25 port on the top of the chamber for a vacuum meter or other devices
  • The vacuum pump is available upon request
Temperature Control
  • Resistance heating at 10VAC up to 1000A
  • K-type thermal couple
  • Max.. working temperature: 1200 °C
  • Max. Heating Rate:  200 °C/ minute
  • 30-segment programmable temperature controller with +/- 1oC accuracy
  • Touch screen panel to control both temperature and vacuum level, and atmospheric pressure
  • RS-485 port and software are included for PC operation and recording temperature and pressure profile
Water Chiller

  • Digital Temperature Controlled Recirculating Water Chiller with 75L/min Flow, 30K BTU/hr - KJ6300 is included
Optional:


Compliance
  • CE Certified
  • NRTL or CSA certification is available at extra cost.



$17,499.30

Original: $49,998.00

-65%
1200 °C Max. Compact SPS Furnace up to 100 MPa YLJ-SPS-1200—

$49,998.00

$17,499.30
